Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

Removal Procedure





Remove the following components from the vehicle:

* The front sill plate trim. Refer to Door Sill Plate Replacement (Service and Repair).

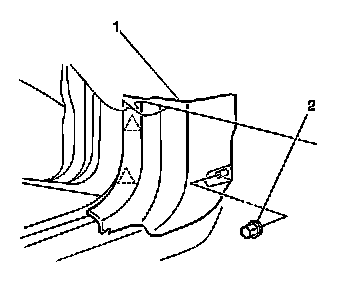

* The plastic retainer (2)
* The body hinge pillar trim panel (1)



Installation Procedure





1. Install the body hinge pillar trim panel (1) to the vehicle. Secure the trim panel with the plastic retainer (2).
2. Install the front sill plate trim. Refer to Door Sill Plate Replacement (Service and Repair).
