Liftgate Door Sill Plate Replacement

Liftgate Door Sill Plate Replacement

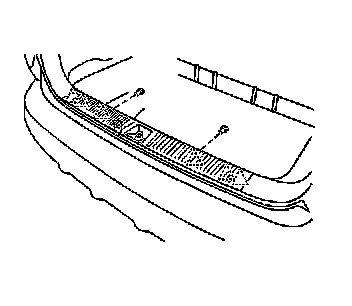

Removal Procedure





1. Open the lift gate.
2. Remove the 2 clips.
3. Using a flat bladded tool, remove the sill plate.



Installation Procedure





1. Align and install the door sill plate by applying pressure to the tabs.
2. Install the 2 clips.
3. Close the lift gate.
