Instrument Panel Storage Compartment Replacement

Instrument Panel Storage Compartment Replacement

Removal Procedure

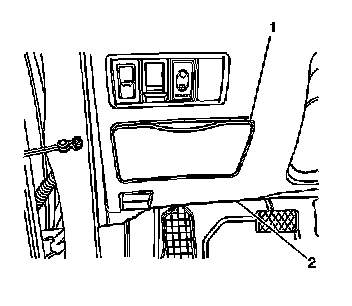

1. Open the instrument panel storage compartment tray (1).

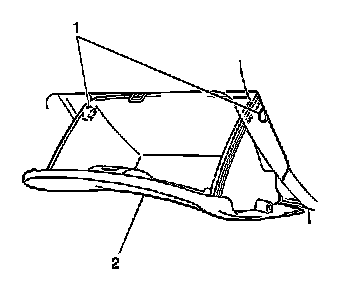

2. Pushing on both sides of the instrument panel storage compartment tray (1), pull out the the compartment tray (2).



Installation Procedure





1. Install the instrument panel storage compartment tray (1) to the instrument panel (2).
2. Close the instrument panel storage compartment tray.
