Fascia Grille Replacement (Lower)

Fascia Grille Replacement (Lower)

Removal Procedure

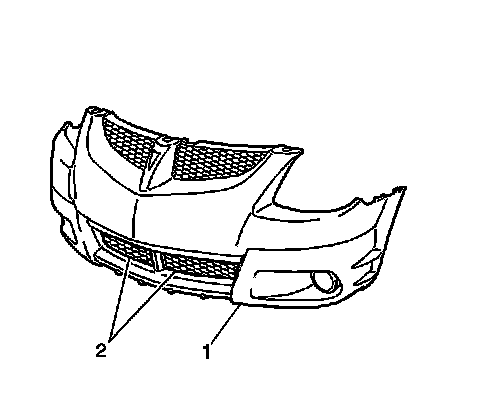

Using a small flat-bladed tool, reach into the opening on the front lower fascia (1) and depress the retaining tabs that lock the lower fascia grille (2).


Installation Procedure





Position the grille retaining tabs to the slots in the front lower fascia (1).


Install the grille (2) by pressing into place until the retaining tabs are fully seated.
