Trunk / Liftgate Handle: Service and Repair

Liftgate Outside Handle Replacement

Removal Procedure





1. Remove liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Service and Repair).
2. Open the liftgate.
3. Disconnect cable from handle.

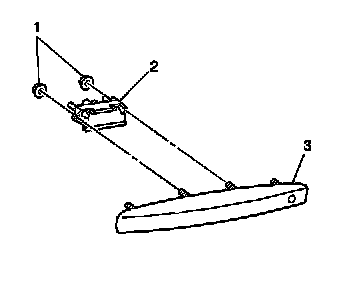

4. Remove the 2 nuts (1) from the liftgate handle (2).
5. Remove the liftgate handle (2) from the liftgate applique studs (3).



Installation Procedure





1. Install the liftgate handle (2) to the liftgate applique studs (3).

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the 2 nuts (1)to the liftgate handle (2).

Tighten the liftgate handle nuts to 4.0 N.m (35 lb in).

3. Connect the cable to liftgate handle.
4. Install liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Service and Repair).
5. Close the liftgate.
