Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

Removal Procedure





1. Raise and suitably support the hood.

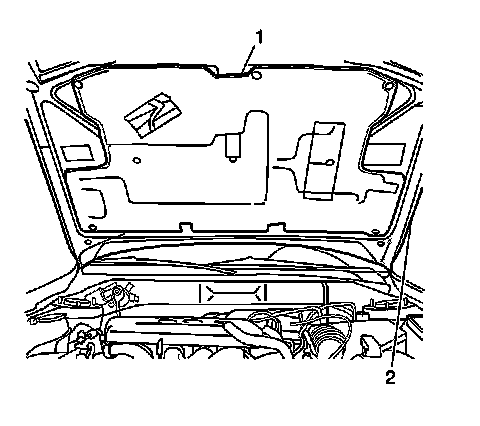

2. Remove the following components from the hood (2):

* The 8 plastic retainers
* The hood insulator (1)




Installation Procedure





1. Install the hood insulator (1) to the hood (2). Secure the insulator with the 8 plastic retainers.
2. Lower the hood.
