Fuel Door: Service and Repair

Fuel Tank Filler Door Replacement

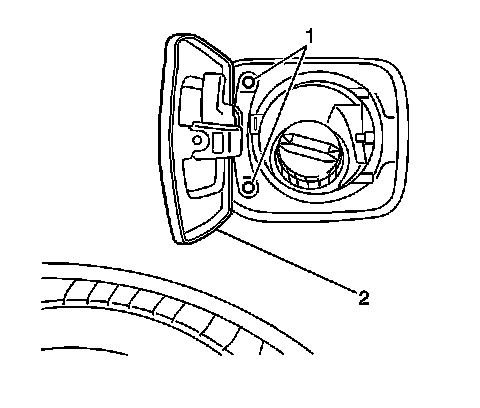

Removal Procedure





1. Open the fuel tank filler door (2).
2. Disconnect the fuel cap retainer.
3. Drill out the 2 rivets (1) that retain the fuel tank filler door (2).
4. Remove the fuel tank filler door (2).



Installation Procedure





1. Install the fuel tank filler door (2). Secure the filler door with 2 rivets (1).
2. Connect the fuel filler cap retainer.
3. Close fuel tank filler door.
