Rear Door Striker: Service and Repair

Rear Side Door Lock Striker Replacement

Removal Procedure





1. Open the rear side door.

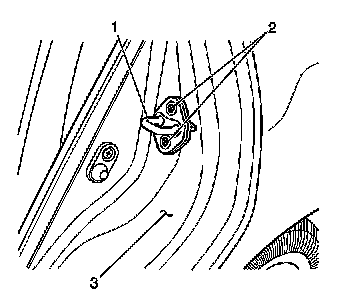

2. Remove the following components from the door jamb:

* The 2 screws (2)
* The door lock striker (1)




Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the door lock striker (1) to the door jamb. Secure the striker with the 2 screws (2).

Tighten the door lock striker screws to 23 N.m (17 lb ft).

2. Close the rear side door.
