Front Bumper Impact Bar Replacement

Front Bumper Impact Bar Replacement


Removal Procedure





1.Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .

2.Remove the front bumper fascia energy absorber from the front bumper impact bar.

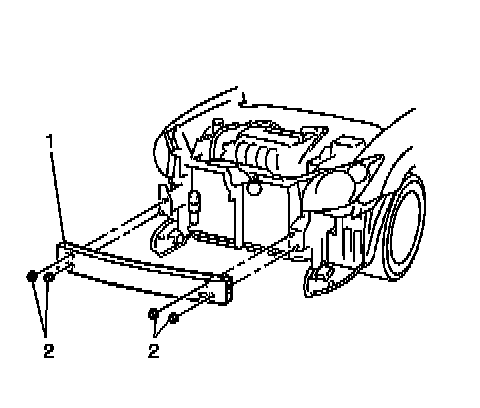

3.Remove the 4 nuts (2) which secure the front bumper impact bar.

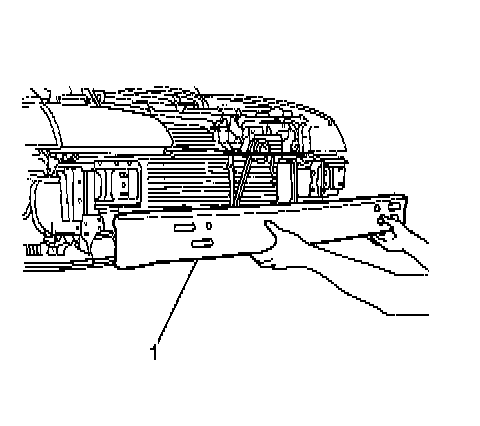

4.Remove the front bumper impact bar (1) from the front bumper impact bar outer brackets.

Installation Procedure





Notice:Refer to Fastener Notice .

1.Install the front bumper impact bar (1) to the front bumper impact bar outer brackets. Secure the impact bar with the 4 nuts (2).

TightenTighten the front bumper impact bar nuts to 36 N �m (26 lb ft).

2.Install the front bumper fascia energy absorber from the front bumper impact bar.

3.Install the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .
