Front Bumper Fascia Energy Absorber Replacement

Front Bumper Fascia Energy Absorber Replacement


Removal Procedure





1.Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .

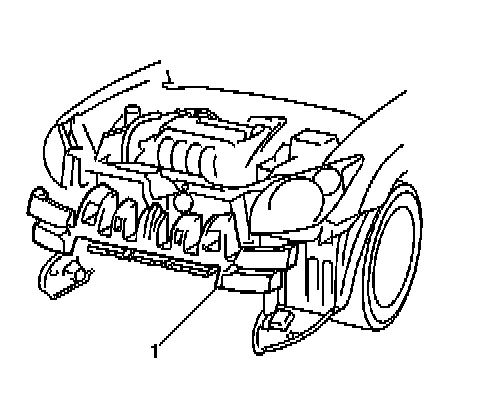

2.Remove the front bumper fascia energy absorber (1) from the front bumper impact bar.

Installation Procedure





1.Install the front bumper fascia energy absorber (1) to the front bumper impact bar.

2.Install the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .
