Radio Rear Side Door Speaker Replacement

Radio Rear Side Door Speaker Replacement

Removal Procedure





1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).

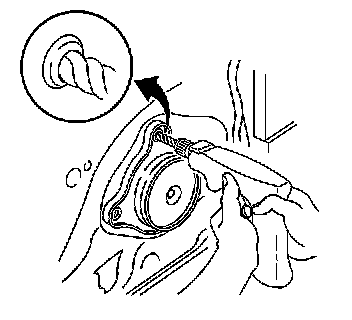

2. Drill out the 3 rear door speaker rivets.
3. Disconnect the speaker electrical connector.
4. Remove the rear door speaker from the vehicle.



Installation Procedure





1. Connect the speaker electrical connector.

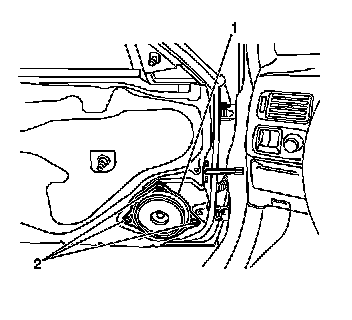

2. Install the speaker (1) to the door. Secure the speaker with 3 rivets (2).
3. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).
