Radio/Stereo: Diagrams



Entertainment/Communication Connector End Views

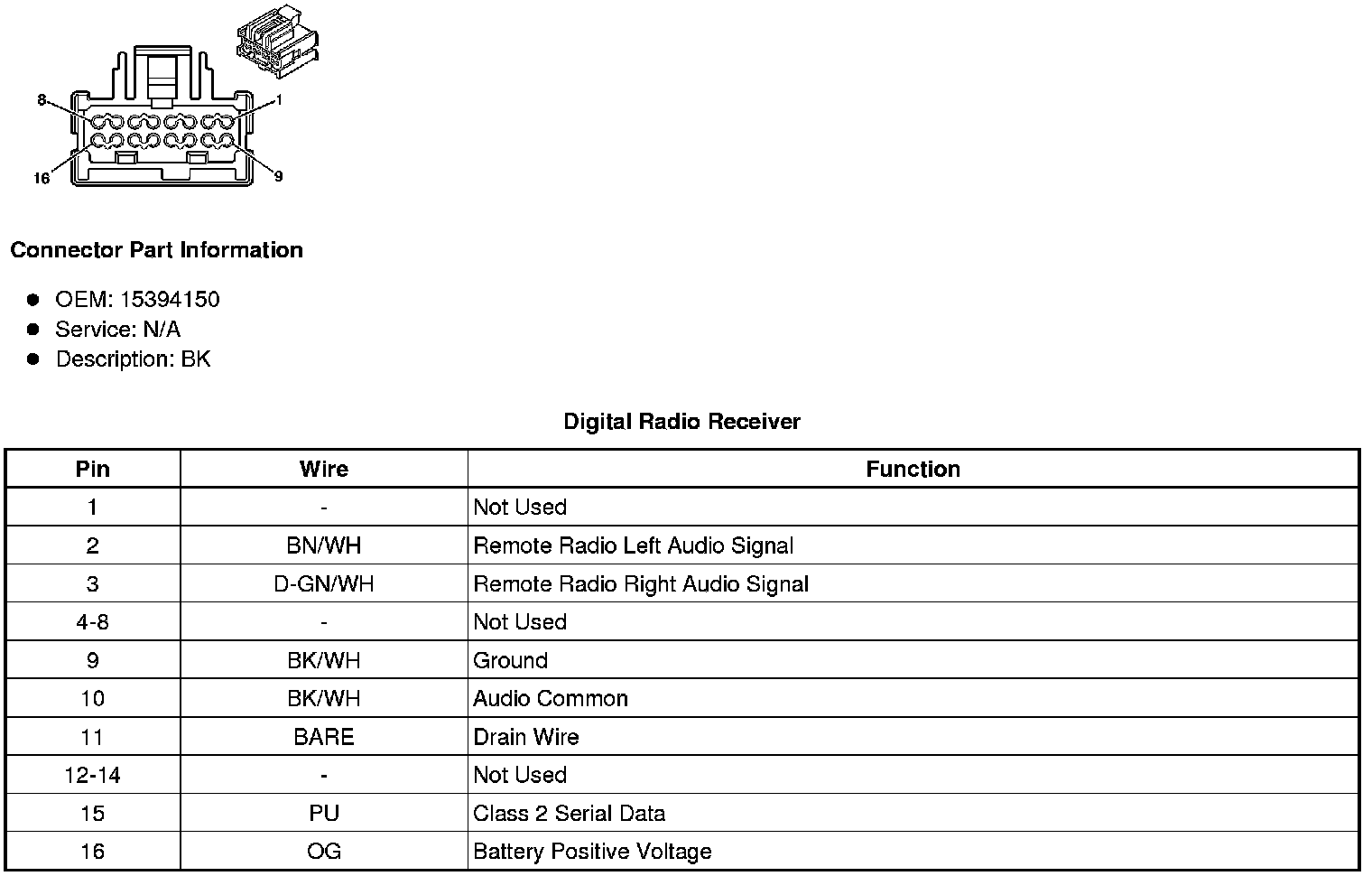

Digital Radio Receiver

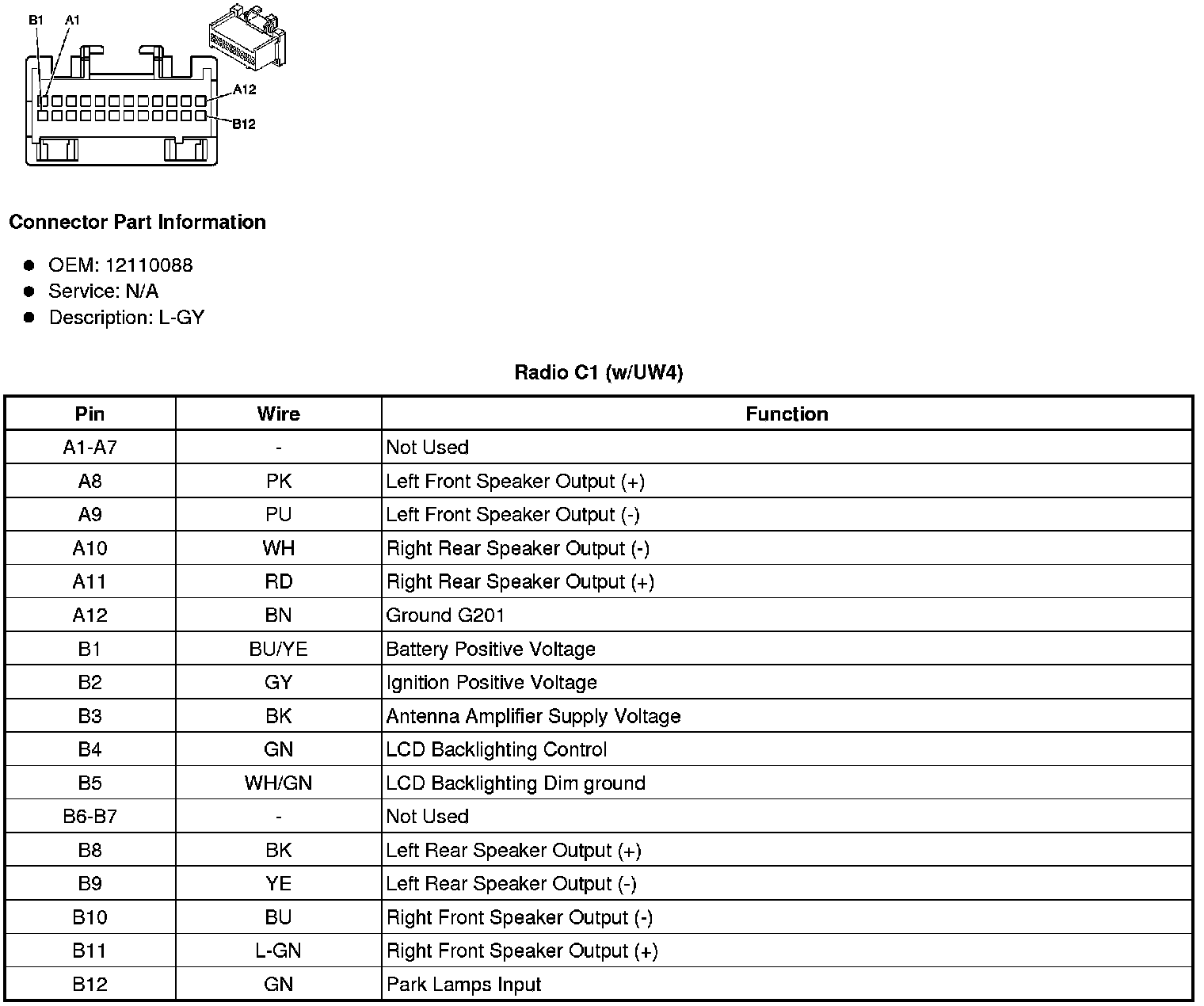

Radio C1 (w/UW4)

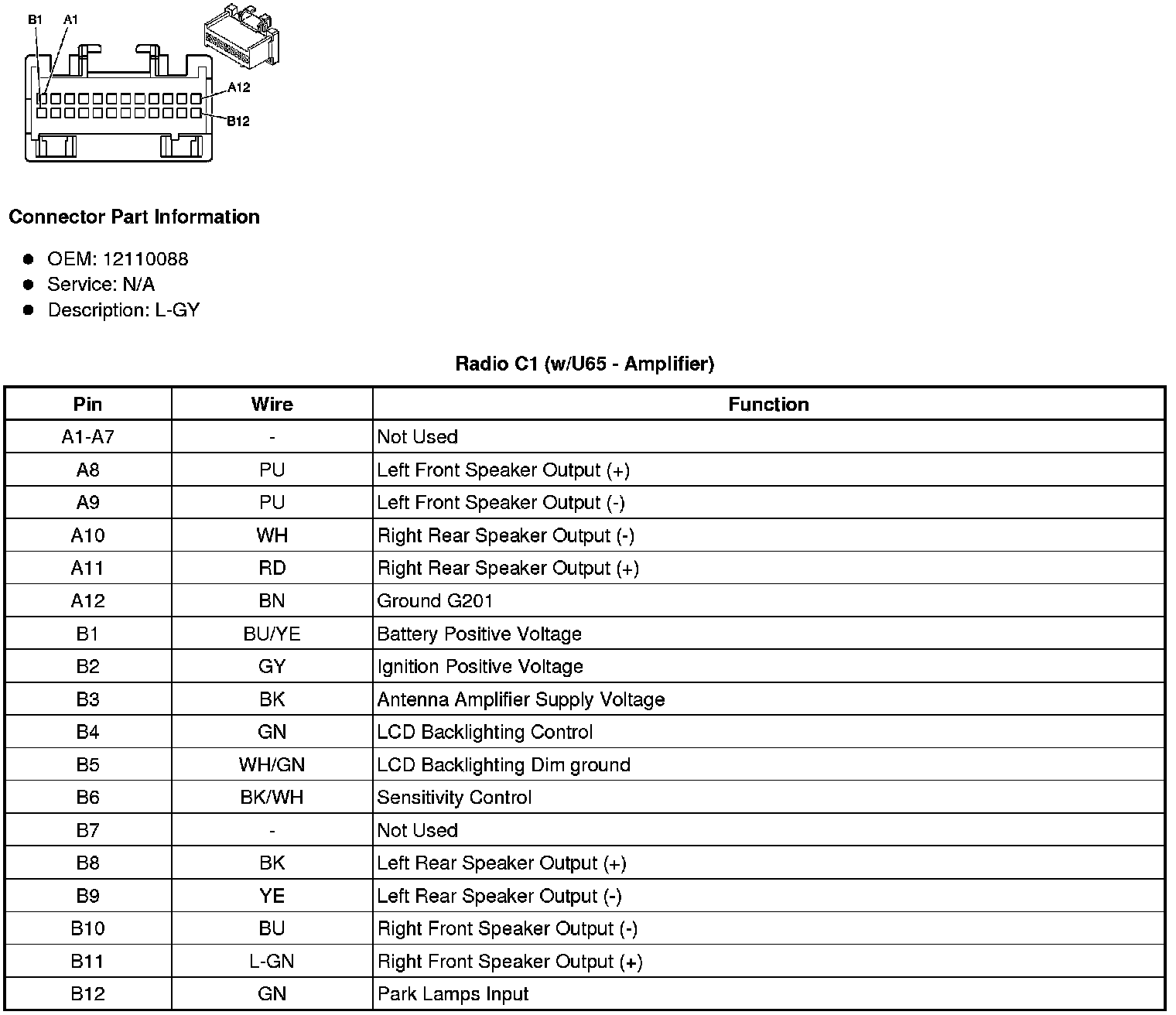

Radio C1 (w/U65 - Amplifier)

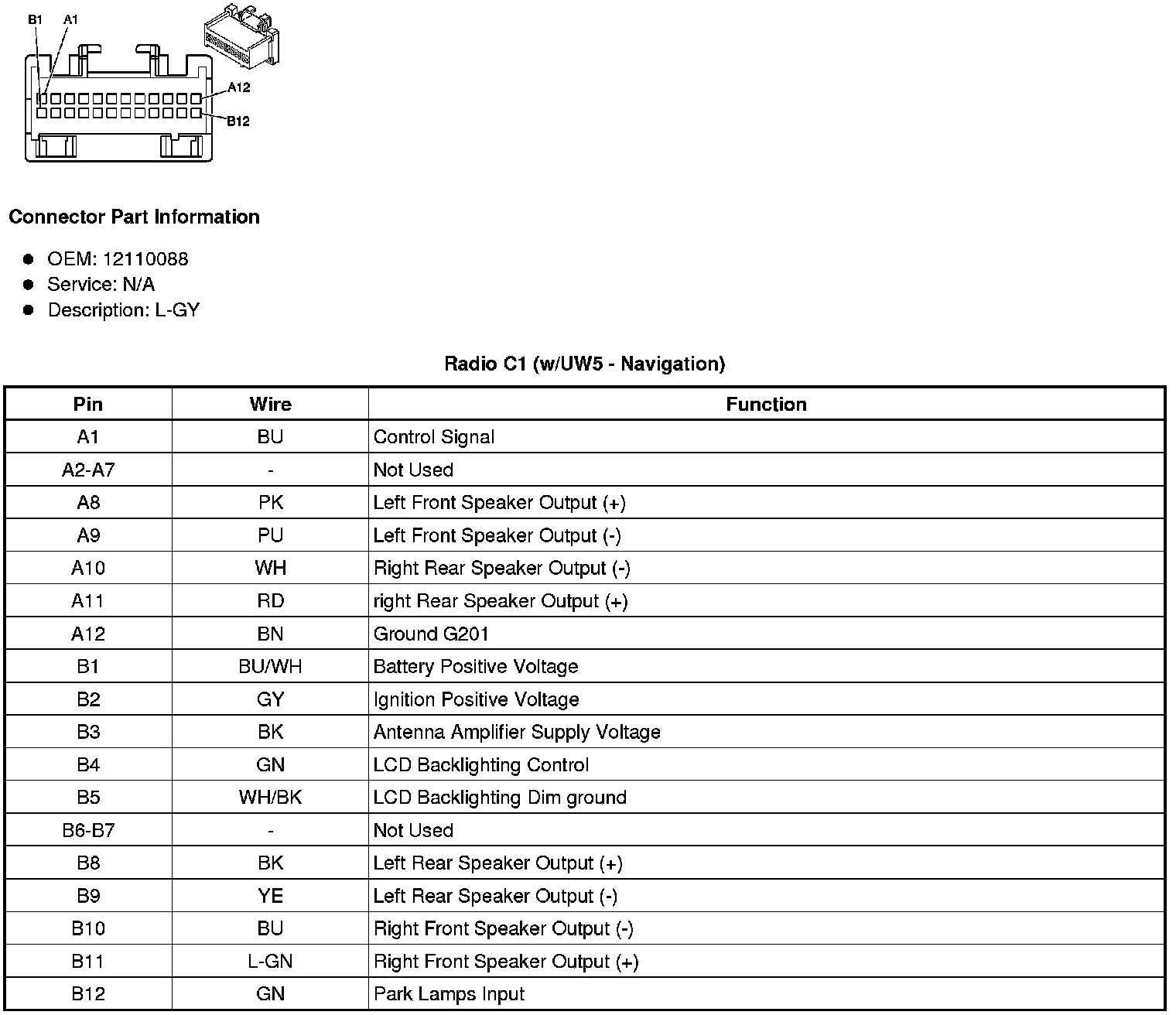

Radio C1 (w/UW5 - Navigation)

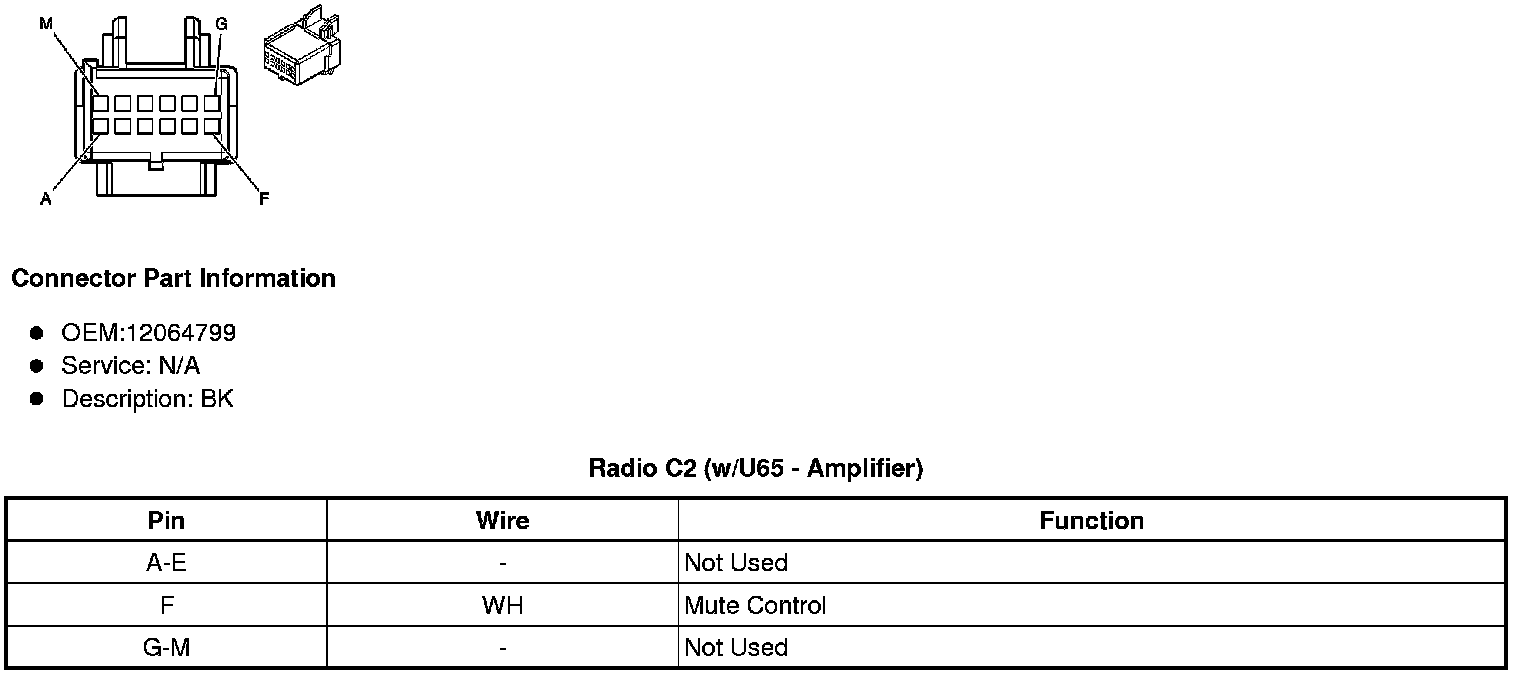

Radio C2 (w/U65 - Amplifier)

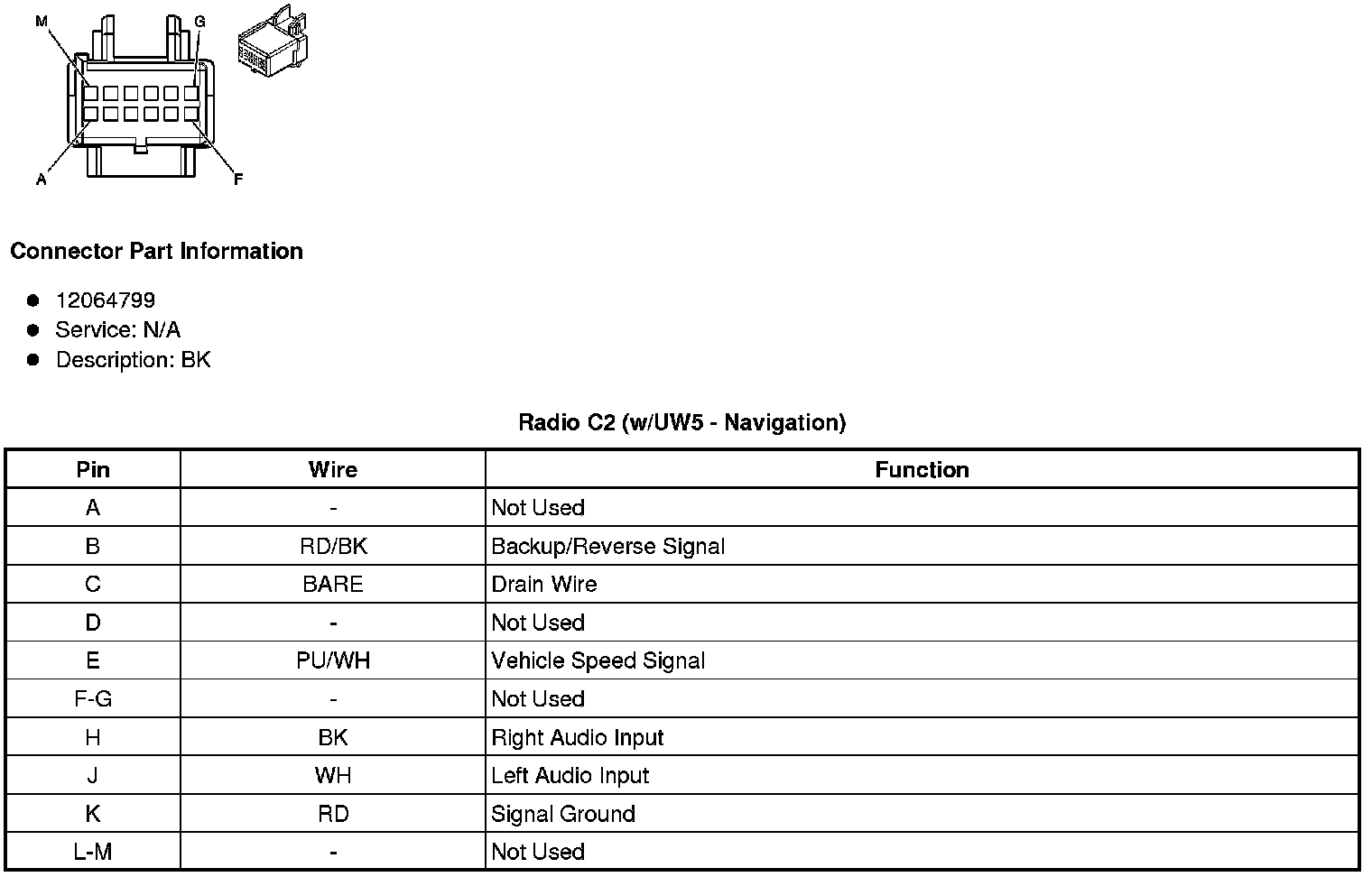

Radio C2 (w/UW5 - Navigation)
