Connector Views



Theft Deterrent System Connector End Views

Anti-Theft Module

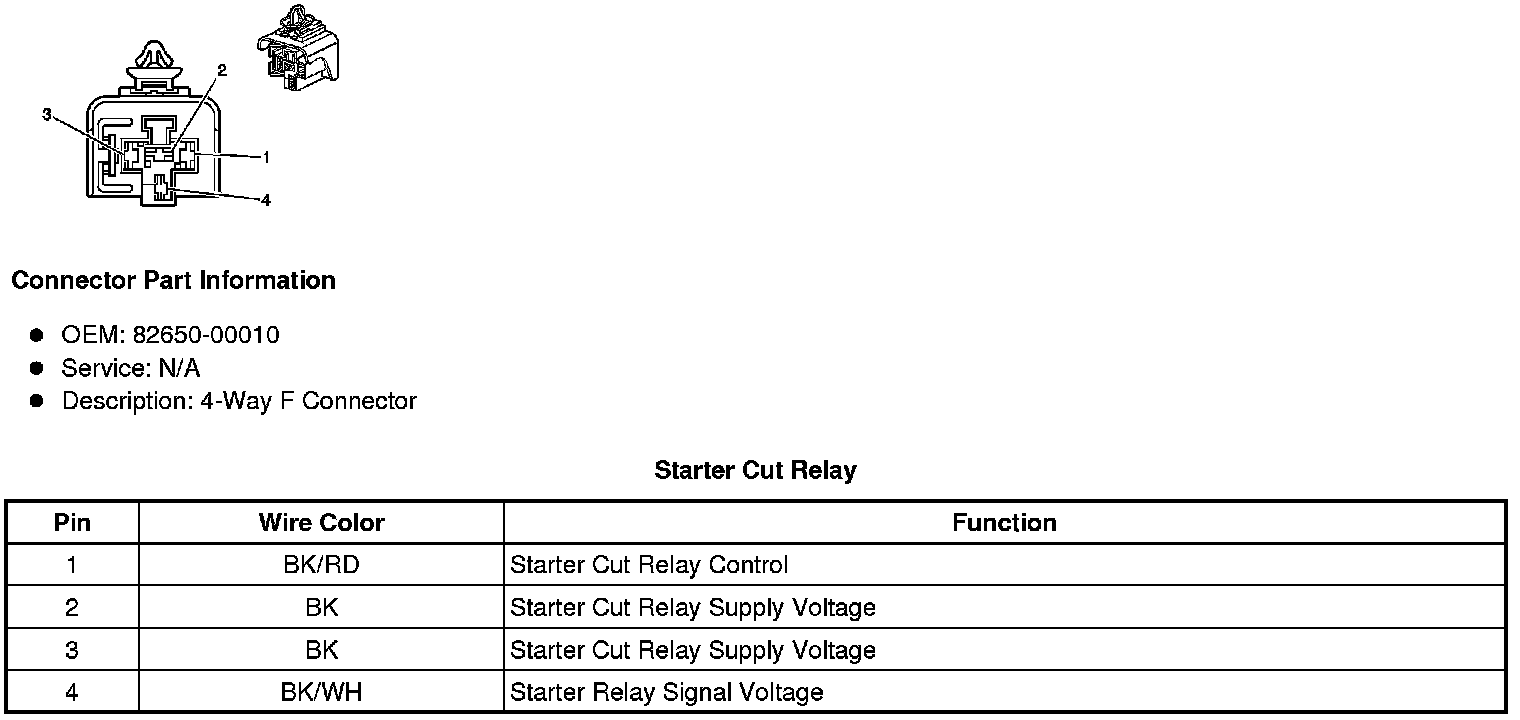

Starter Cut Relay

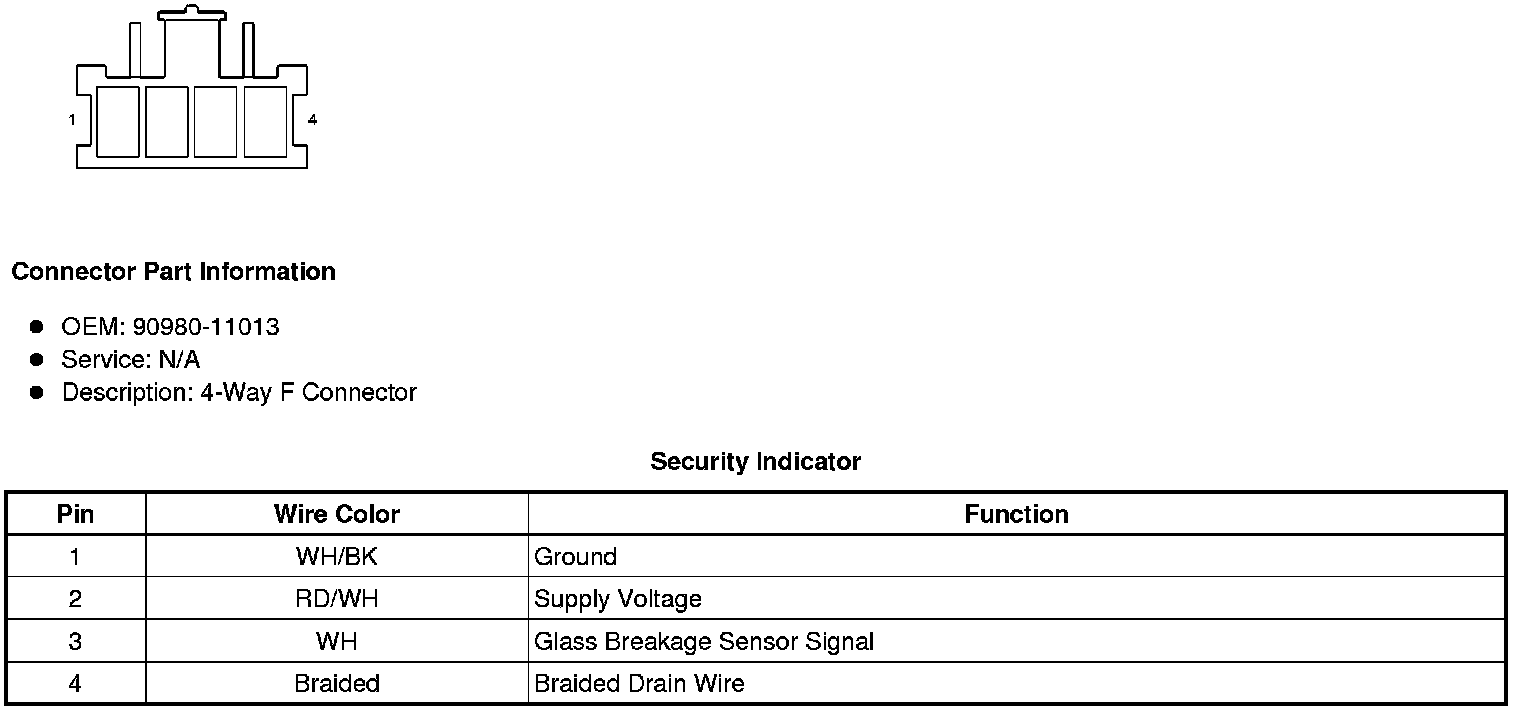

Security Indicator

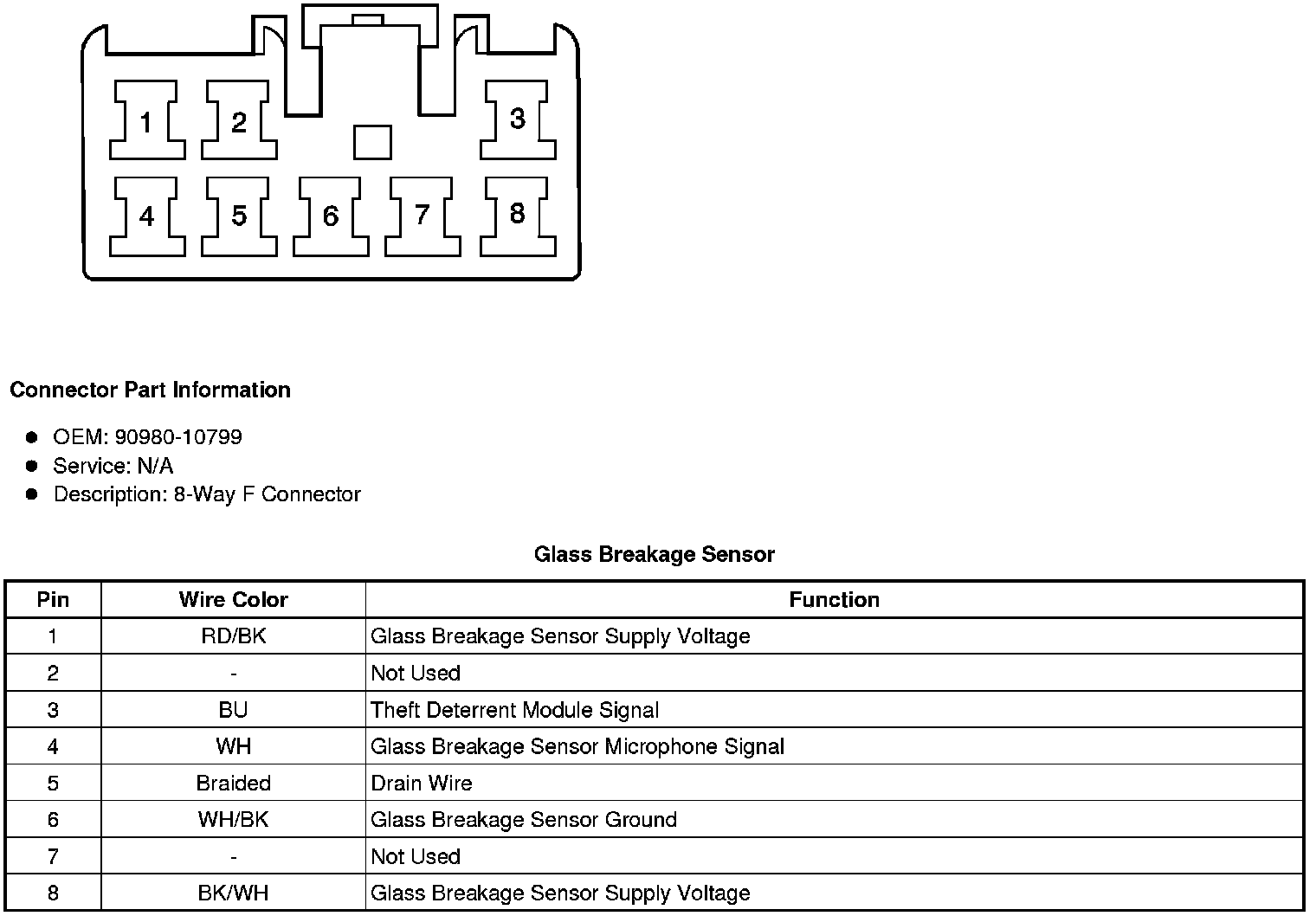

Glass Breakage Sensor
