Radio Antenna Cable Extension Cable Replacement

Radio Antenna Cable Extension Cable Replacement

Removal Procedure





1. Remove the right front windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement (Service and Repair).

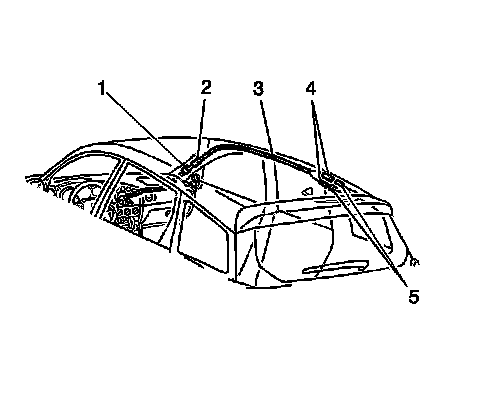

2. Disconnect the antenna extension cable (1) from the antenna cable (2).
3. Remove the instrument panel (I/P) storage compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).




4. Remove the radio. Refer to Radio Replacement (Radio Replacement).
5. Cut off the visible ends of the antenna extension cable.



Installation Procedure





1. Route the antenna extension cable. Secure the cable.
2. Connect the antenna extension cable to the radio. Install the radio. Refer to Radio Replacement (Radio Replacement).




3. Connect the antenna extension cable (1) to the radio to the antenna cable (2).
4. Install the windshield garnish molding. Refer to Instrument Panel Compartment Replacement (Service and Repair).
5. Install the I/P storage compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).
6. Install the right front windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement (Service and Repair).
