Digital Radio Antenna Cable Replacement

Digital Radio Antenna Cable Replacement

Removal Procedure

1. Remove the right rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Service and Repair).
2. Remove the right rear assist handle. Refer to Assist Handle Replacement (Service and Repair).
3. Remove the rear dome lamp. Refer to Dome Lamp Replacement (Service and Repair).
4. Disengage the rear headliner retainers.

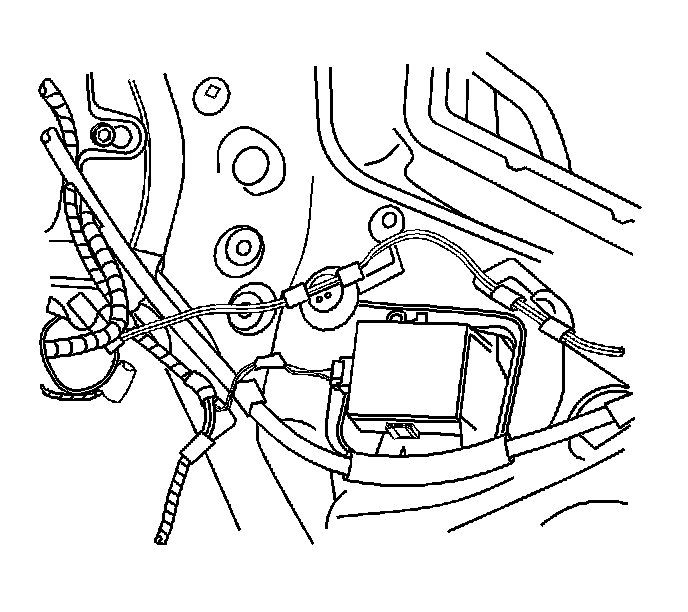

5. Disconnect the antenna cable connector from the XM antenna cable.

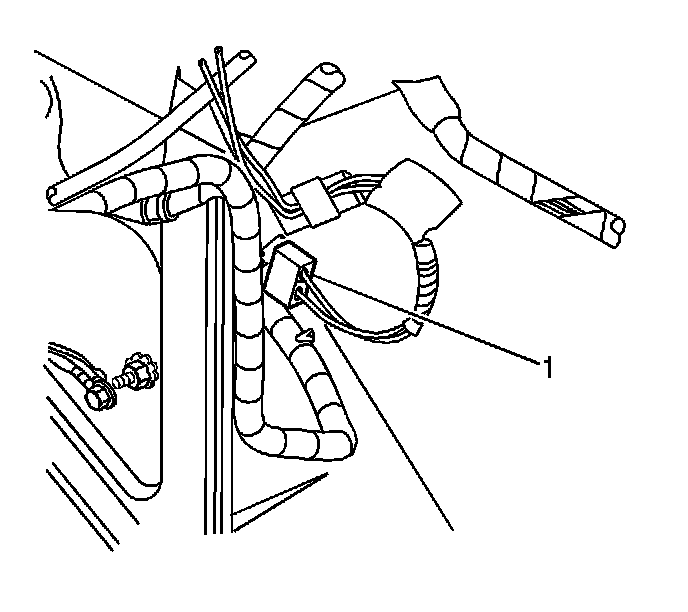

6. Disconnect the coaxial cable connector from the XM receiver.

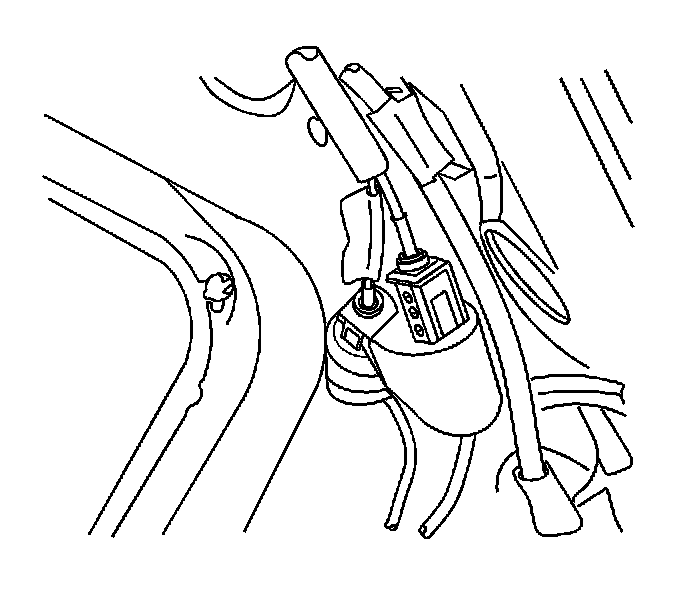

7. Disconnect the 3 retainers from the vehicle.



Installation Procedure





1. Connect the 3 retainers to the vehicle.




2. Connect the coaxial cable connector to the XM receiver.




3. Connect the antenna cable connector to the XM antenna cable.
4. Install the rear dome lamp. Refer to Dome Lamp Replacement (Service and Repair).
5. Engage the rear headliner retainers.
6. Install the right rear assist handle. Refer to Assist Handle Replacement (Service and Repair).
7. Install the right rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Service and Repair).
