Antenna, Navigation: Service and Repair

Cellular and Navigation Antenna Assembly Replacement

Removal Procedure





1. Remove the headliner. Refer to Headlining Trim Panel Replacement (Service and Repair).

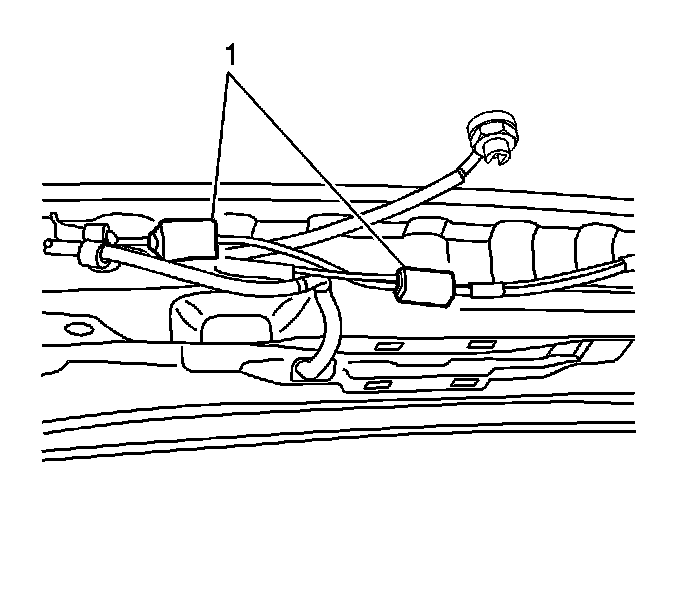

2. Disconnect 2 antenna connectors (1).




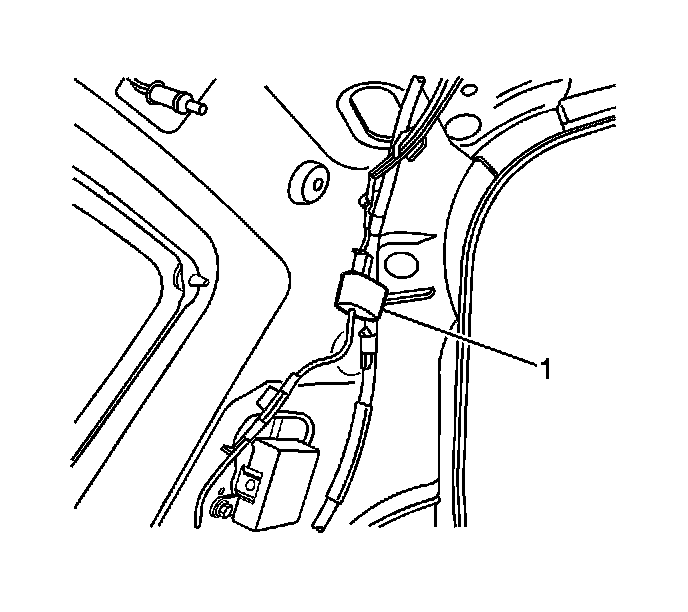

3. Disconnect 1 antenna connector (1).

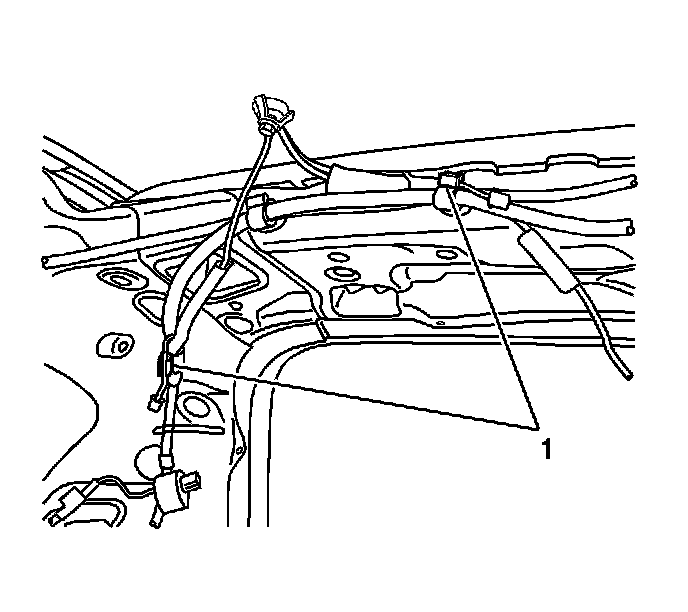

4. Remove the antenna harness from the antenna harness retaining clips (1).

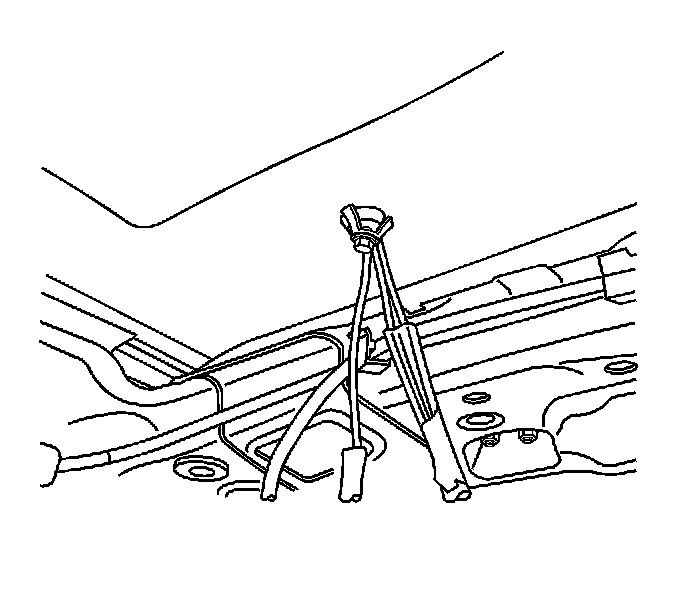

5. Remove the antenna mounting bracket bolt and the mounting bracket.

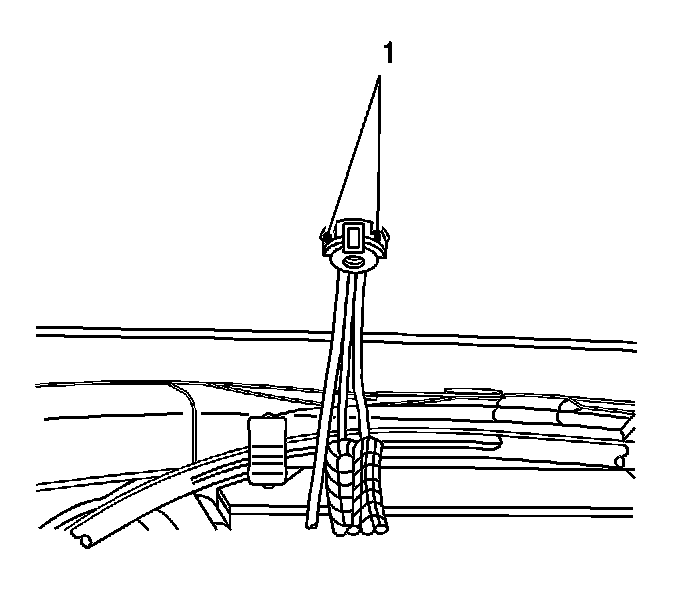

6. Depress the antenna locking tabs (1) and remove the antenna.



Installation Procedure

1. Install the antenna.





Notice: Fastener Notice (Fastener Notice).

2. Install the antenna mounting bracket and mounting bracket bolt.

Tighten the antenna mounting bracket bolt to 6 N.m (53 lb in).





3. Install the antenna harness in the antenna harness retaining clips (1).




4. Connect 1 antenna connector (1).




5. Connect 2 antenna connectors (1).
6. Install the headliner. Refer to Headlining Trim Panel Replacement (Service and Repair).
