Automatic Transmission Control Indicator Replacement

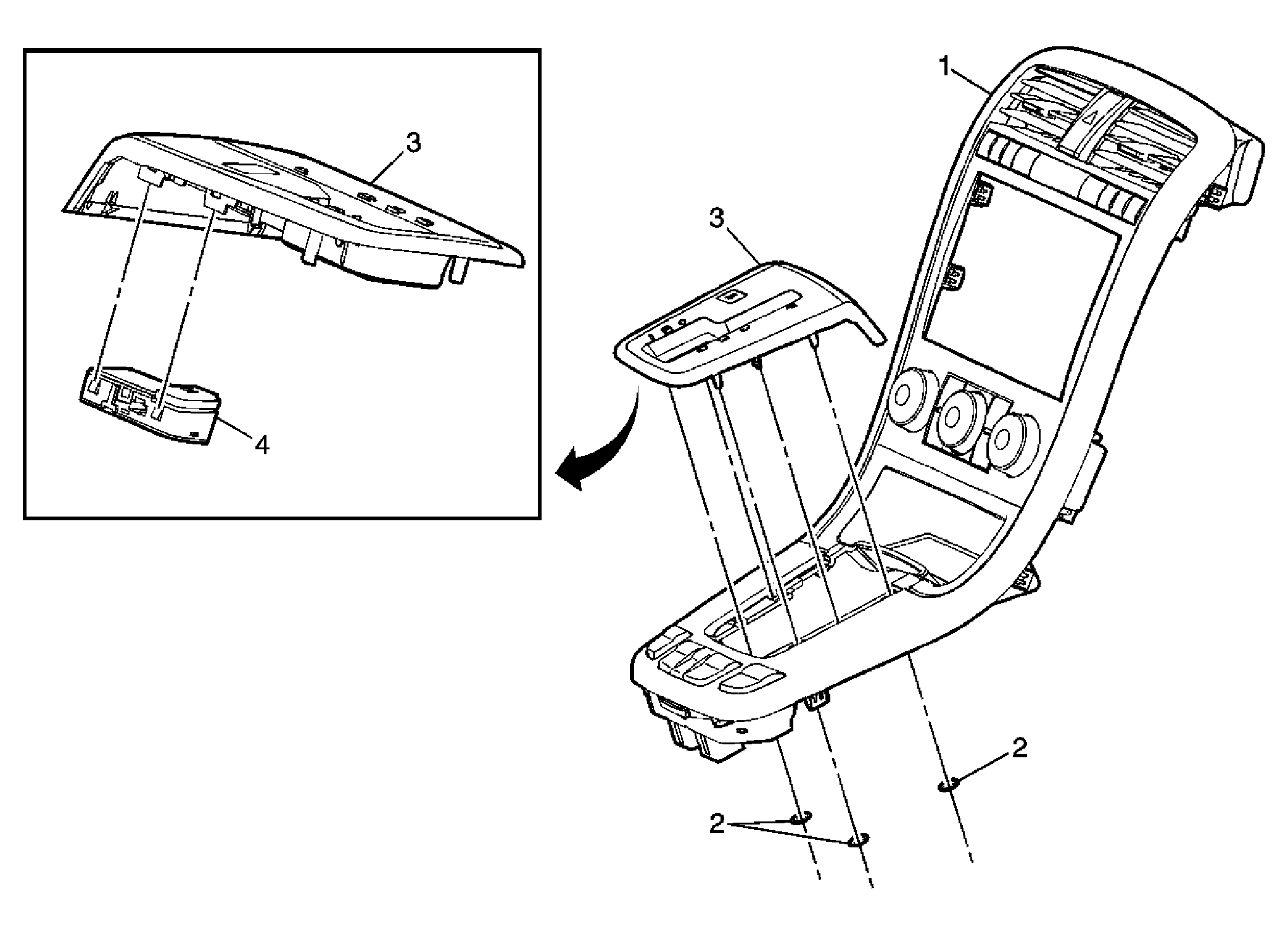

Fig 1: Identifying Automatic Transmission Control Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the shift control lever knob. Refer to Transmission Control Lever Knob Replacement .
1	Center Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement .
2	Shift Indicator Trim Plate Retainers (Qty: 3)
3	Shift Indicator Trim Plate Tip:  Release the retaining tabs to remove the shift indicator from the center trim bezel.
4	Traction Control Switch Tip:  Release 4 retaining tabs to remove the traction control switch from the shift indicator.
