Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying PCV Foul Air Pipe
    GM1870253Courtesy of GENERAL MOTORS CORP.
  1. Connect the PVC foul air pipe (1) to the PVC valve.

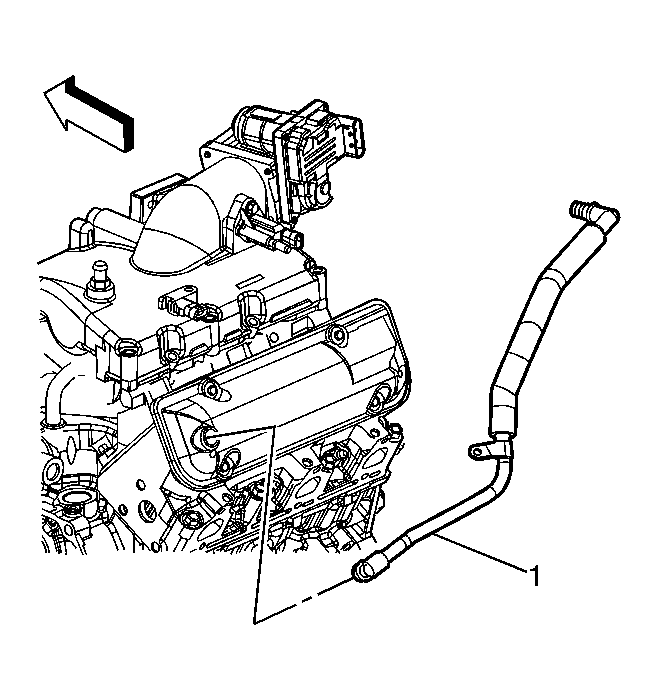

    2. Fig 2: Identifying PCV Fresh Air Pipe At Valve Cover
    GM1087858Courtesy of GENERAL MOTORS CORP.
  2. Connect the PVC fresh air pipe (1) to the valve cover.

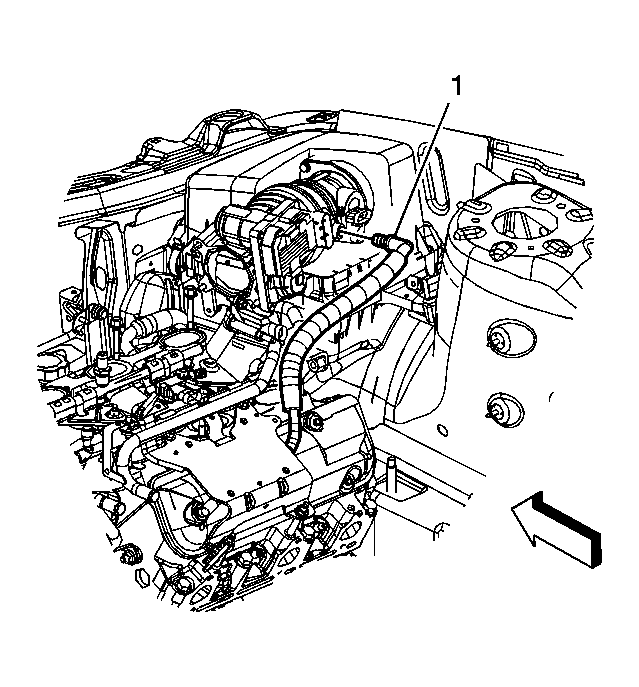

    3. Fig 3: View Of PCV Fresh Air Pipe At Air Cleaner Duct
    GM1370535Courtesy of GENERAL MOTORS CORP.
  3. Connect the PVC fresh air pipe (1) to the air cleaner duct.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
