Removal Procedure

WARNING: This page is about a different variant/trim than selected.

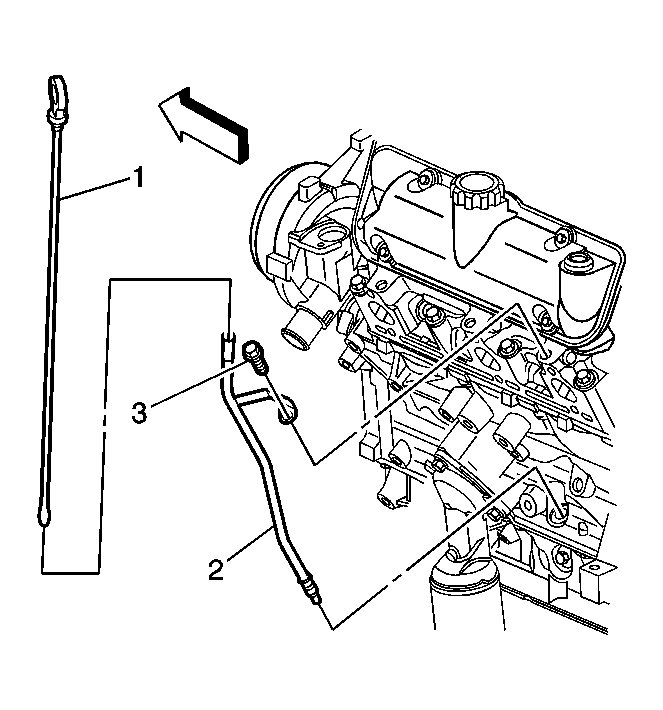

    Fig 1: View Of Oil Level Indicator, Tube & Bolt
    GM1087764Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator (1).
  2. Remove the oil level indicator tube bolt (3).
  3. Remove the oil level indicator tube (2).

    If you are unable to remove the oil level indicator tube, perform the following steps:

    1. Remove the stud in order to allow for lateral movement of the oil level indicator tube.
    2. Apply penetrating oil to the bottom of the oil level indicator tube.
    3. Move the oil level indicator tube back and forth in order to loosen the oil level indicator tube.
