Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Oil Cap, Oil Filler Tube & EGR Electrical Connector
    GM1870244Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil cap (1) and the oil filler tube (2).
  2. Disconnect the exhaust gas recirculation (EGR) electrical connector (3).

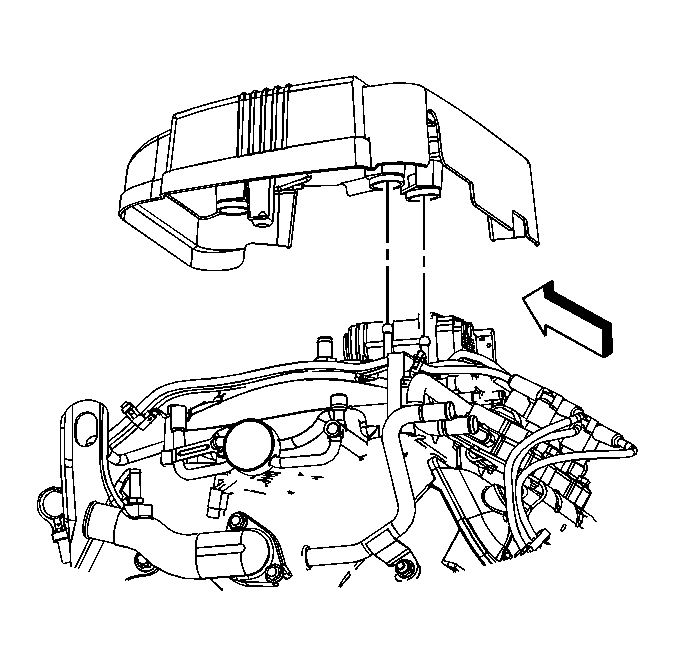

    3. Fig 2: Identifying Injector Sight Shield
    GM1870245Courtesy of GENERAL MOTORS CORP.
  3. Remove the injector sight shield from the studs.

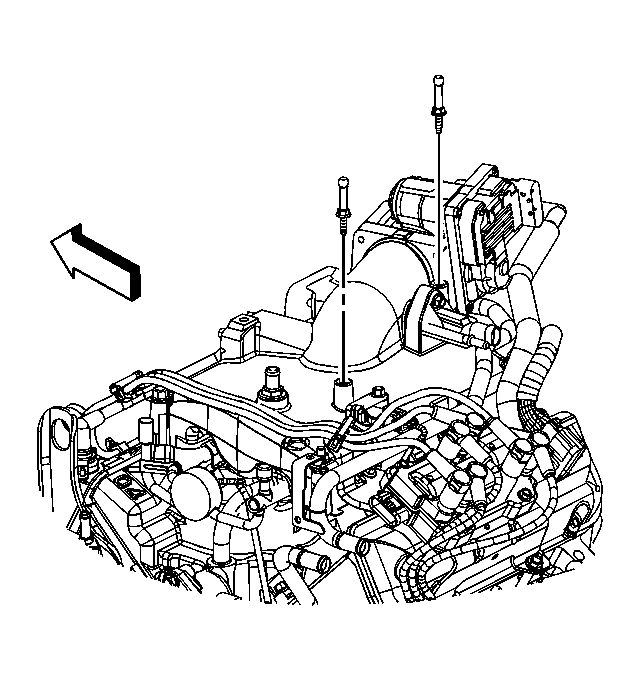

    4. Fig 3: Identifying Intake Manifold Studs
    GM1870247Courtesy of GENERAL MOTORS CORP.
  4. If replacing the sight shield studs, remove the studs from the intake manifold.
