Engine and Transmission Mount Balancing - All Mounts

WARNING: This page is about a different variant/trim than selected.
    IMPORTANT: Follow the balance procedure in the order listed in the following steps. Powertrain mounts must be tightened in sequence.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Position two floor jacks with wood blocks under the engine and transmission to support the powertrain assembly.
    3. Fig 1: View Of Transmission Mount-To-Transmission Bolts
    GM851556Courtesy of GENERAL MOTORS CORP.
  3. From the engine compartment, loosen the transmission mount to transmission bolts.

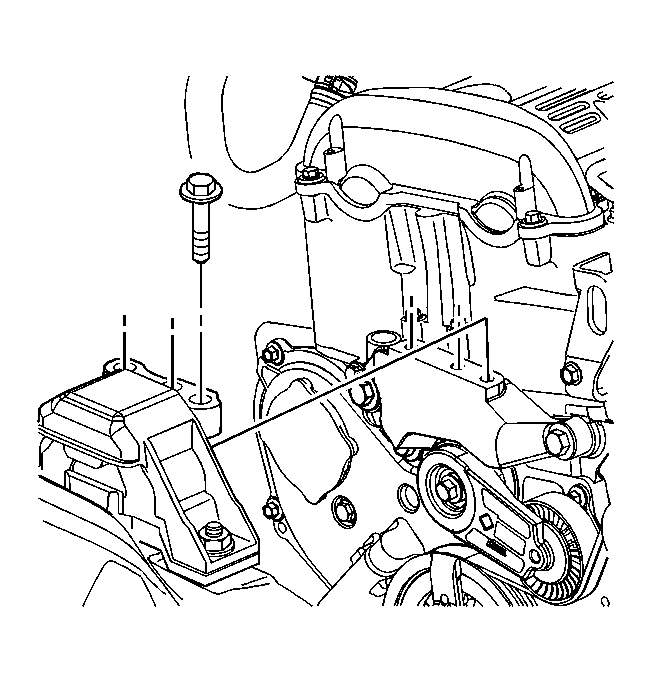

    4. Fig 2: View Of Engine Mount To Intermediate Bracket Bolts
    GM851553Courtesy of GENERAL MOTORS CORP.
  4. Loosen the engine mount to intermediate bracket bolts.
    5. Fig 3: View Of Front Transmission Mount Through Bolt
    GM851568Courtesy of GENERAL MOTORS CORP.
  5. Loosen the front transmission mount through bolt. Do not remove.
    6. Fig 4: View Of Rear Transaxle Mount Through Bolt
    GM851620Courtesy of GENERAL MOTORS CORP.
  6. Loosen the rear transmission mount through bolt. Do not remove.
  7. Loosen the rear transmission mount to cradle bolts.
  8. Reposition the floor jacks to allow a 1/8 inch gap between the mount and mount bracket.
    9. Fig 5: View Of Transmission Mount Centered In Clevis On Cradle
    GM1770674Courtesy of GENERAL MOTORS CORP.
  9. Ensure the front transmission mount is centered in the front clevis on the cradle.
    10. Fig 6: View Of Transmission Mount-To-Transmission Bolts
    GM851556Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  10. Tighten the transmission mount to transmission bolts using the following sequence:
    1. Rear bolt
    2. Middle bolt
    3. Front Bolt

      Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    11. Fig 7: View Of Engine Mount To Intermediate Bracket Bolts
    GM851553Courtesy of GENERAL MOTORS CORP.
  11. Tighten the engine mount to intermediate bracket bolts starting with the center bolt.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  12. Ensure the rear transmission mount bracket is seated on the transmission housing.
  13. Center the rear transmission mount in the rear cradle clevis.
  14. Tighten the rear transmission mount to cradle bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  15. Remove the floor jacks.
  16. Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
    17. Fig 8: View Of Rear Transaxle Mount Through Bolt
    GM851620Courtesy of GENERAL MOTORS CORP.
  17. Tighten the rear transmission mount through bolt.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

    18. Fig 9: View Of Front Transmission Mount Through Bolt
    GM851568Courtesy of GENERAL MOTORS CORP.
  18. Tighten the front transmission mount through bolt.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

  19. Lower the vehicle.
