Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Knock Sensor & Oil Pressure Indicator Switch Electrical Connectors
    GM1371162Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the oil pressure indicator switch electrical connector (2).

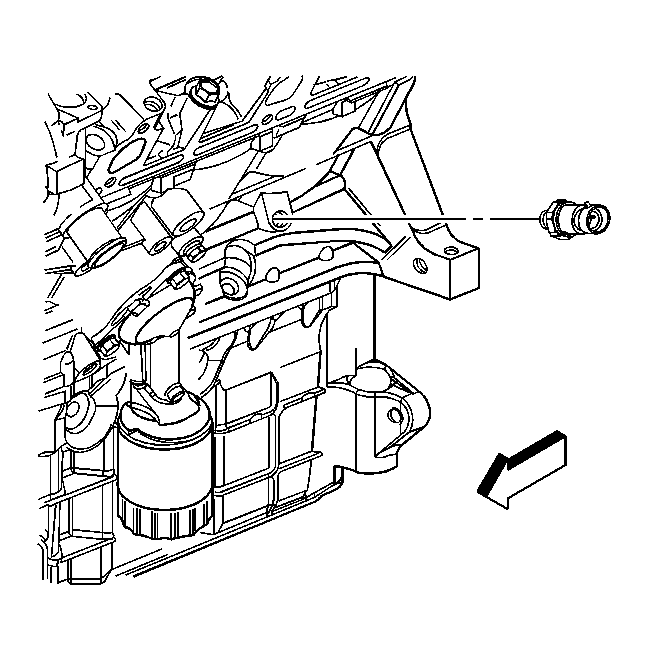

    3. Fig 2: View Of Oil Pressure Indicator Switch
    GM1087801Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pressure indicator switch from the engine block.
