Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Support the engine. Refer to Engine Support Fixture .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

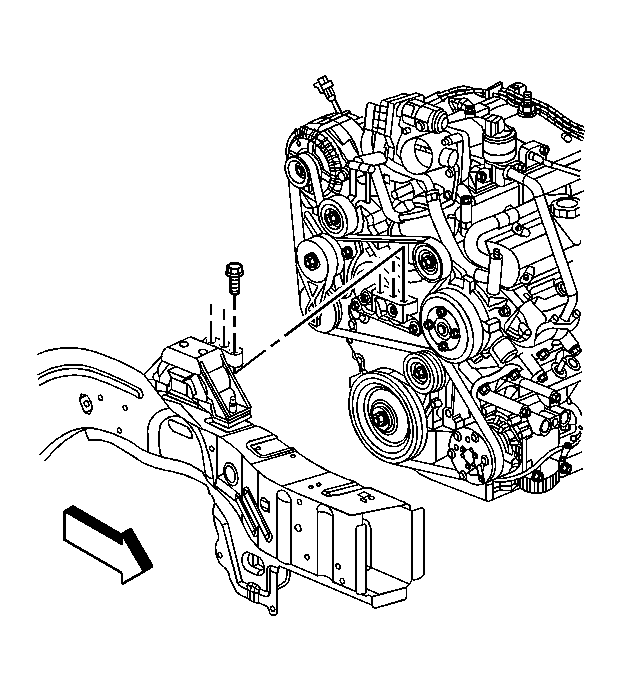

    4. Fig 1: View Of Right Engine Mount To Bracket Bolts
    GM1398174Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount to bracket bolts.
    5. Fig 2: View Of Right Engine Mount To Frame Rail Nuts
    GM1398175Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount to frame rail nuts.
  6. Remove the engine mount from the vehicle.
