Removal Procedure

WARNING: This page is about a different variant/trim than selected.

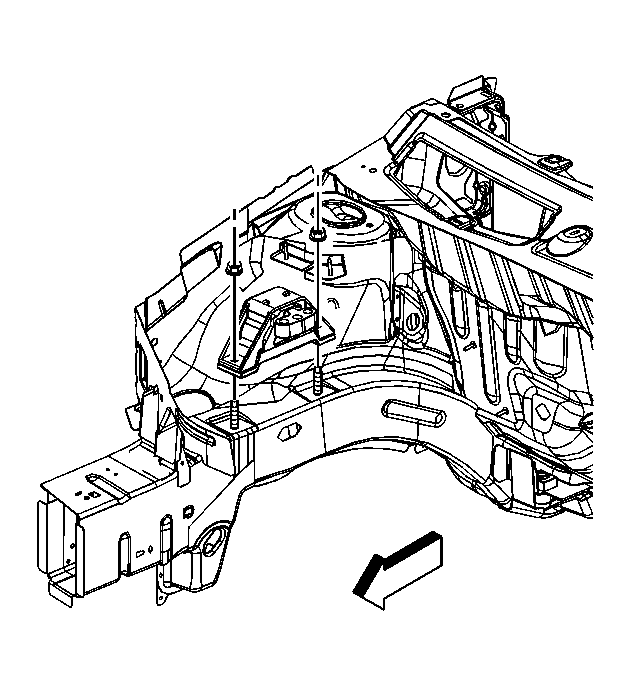

    Fig 1: View Of Right Engine Mount To Frame Rail Nuts
    GM1398175Courtesy of GENERAL MOTORS CORP.
  1. Remove the right engine mount. Refer to Engine Mount Replacement - Right Side .
    2. Fig 2: View Of Right Engine Mount Bracket
    GM1407998Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount bracket to engine bolts (1-4).
  3. Remove the engine mount bracket from the engine.
