Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the thermostat housing. Refer to Engine Coolant Thermostat Replacement (RPO LNJ) or Engine Coolant Thermostat Replacement (RPO LY7) .

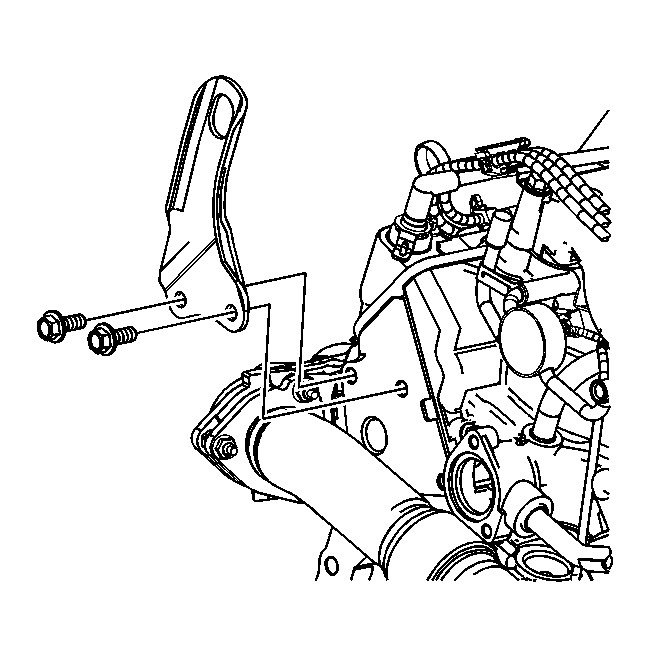

    2. Fig 1: View Of Engine Lift Bracket & Bolts
    GM1325614Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine lift bracket bolts.
  3. Remove the engine lift bracket from the left cylinder head.
