Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Jack-Stand & Block Of Wood
    GM1870239Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Place a jack-stand and a block of wood under the oil pan.

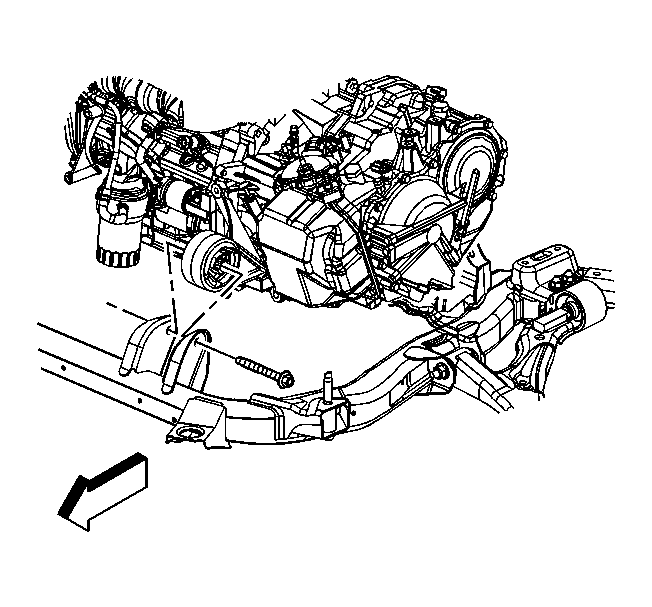

    3. Fig 2: View Of Transmission Mount Bolt
    GM1398177Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount bolt.

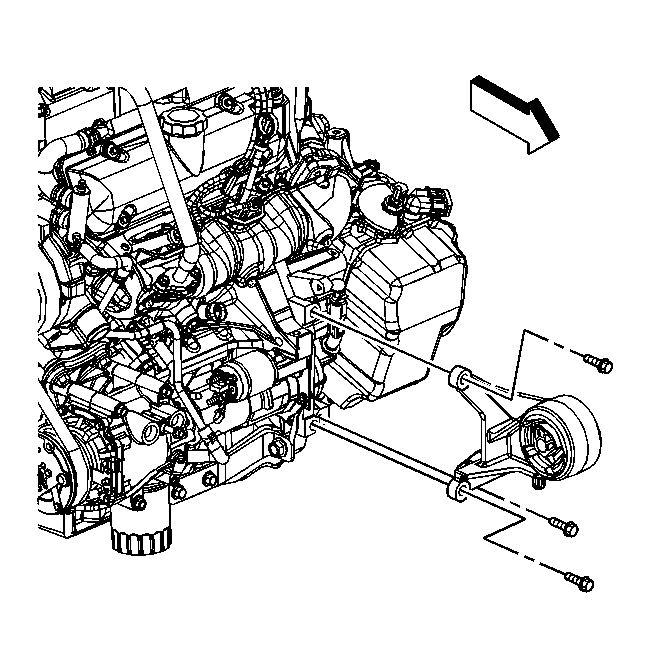

    4. Fig 3: View Of Transmission Mount & Bolts
    GM1398172Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission mount-to-transmission bolts.
  5. Remove the transmission mount from the vehicle.
