Installation Procedure

WARNING: This page is about a different variant/trim than selected.

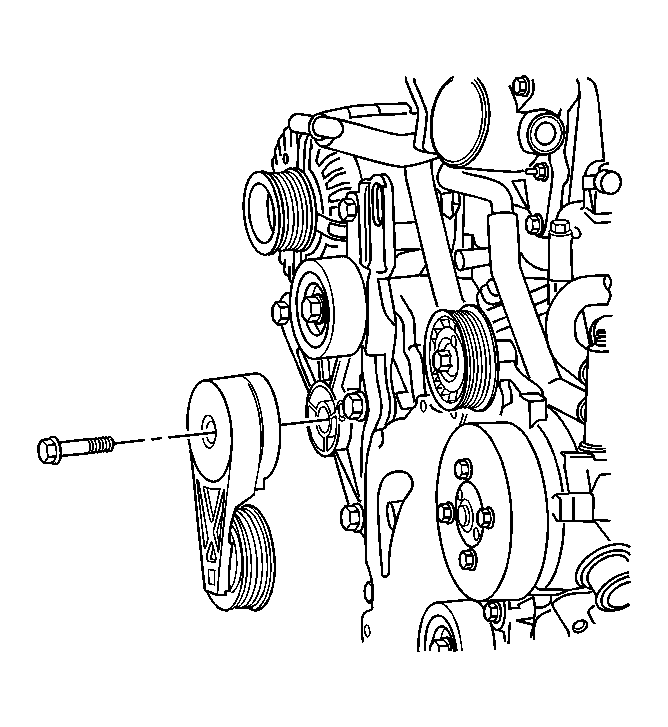

    Fig 1: View Of Drive Belt Tensioner & Bolt
    GM1317238Courtesy of GENERAL MOTORS CORP.
  1. Install the bolt to the drive belt tensioner.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt tensioner and bolt as an assembly to the generator bracket.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

    3. Fig 2: View Of Drive Belt
    GM1309849Courtesy of GENERAL MOTORS CORP.
  3. Insure the drive belt is properly centered on all the pulleys except the right idler pulley (3).
  4. Using J 39914  rotate the drive belt tensioner away from the drive belt.
  5. Install the drive belt to the right idler pulley (2).
  6. Carefully release J 39914  allowing the drive belt tensioner (8) to come in contact with the drive belt.
  7. Remove J 39914  from the drive belt tensioner (8).
  8. Inspect the drive belt to insure the belt is properly centered on all the pulleys (1-8).
  9. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
  10. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
