Installation Procedure

WARNING: This page is about a different variant/trim than selected.

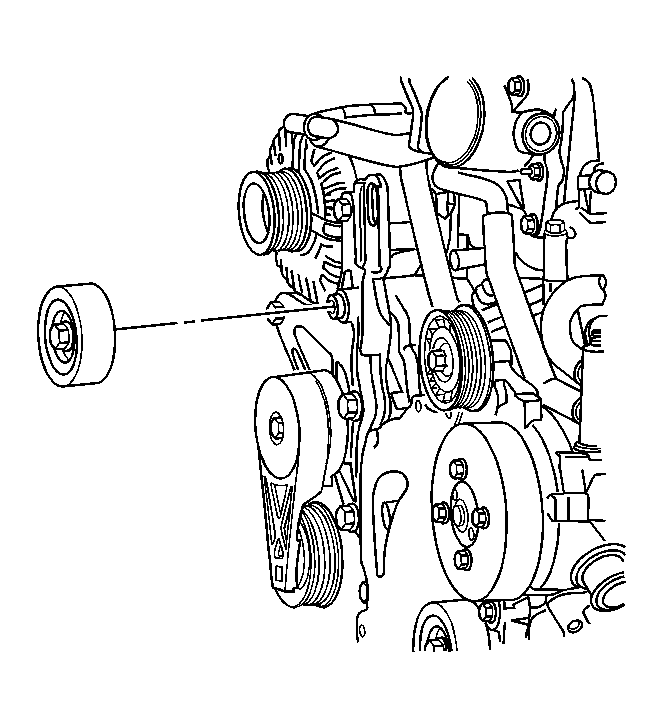

    Fig 1: View Of Right Belt Idler Pulley
    GM1317204Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the right belt idler pulley and bolt to the generator bracket.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

    2. Fig 2: View Of Drive Belt
    GM1309849Courtesy of GENERAL MOTORS CORP.
  2. Insure the drive belt is properly centered on all the pulleys except the right idler pulley (3).
  3. Using J 39914  rotate the drive belt tensioner away from the drive belt.
  4. Install the drive belt to the right idler pulley (2).
  5. Carefully release J 39914  allowing the drive belt tensioner (8) to come in contact with the drive belt.
  6. Remove J 39914  from the drive belt tensioner (8).
  7. Inspect the drive belt to insure the belt is properly centered on all the pulleys (1-8).
  8. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
  9. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
