Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Drive Belt
    GM1309849Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
  3. Using J 39914  rotate the drive belt tensioner (8) to release the tension on the drive belt.
  4. Remove the drive belt from the left idler pulley (3).
  5. Carefully release J 39914  to relieve the drive belt tensioner spring tension.
  6. Remove J 39914  from the drive belt tensioner (8).

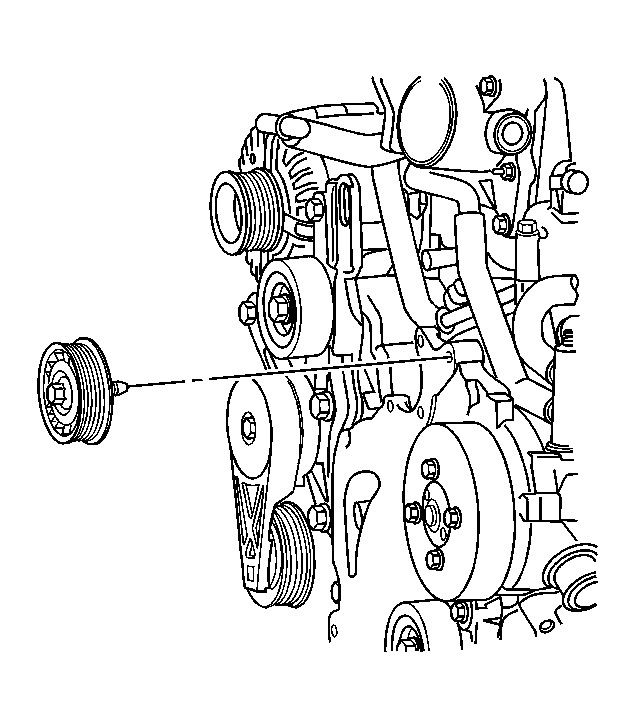

    7. Fig 2: View Of Left Belt Idler Pulley
    GM1317166Courtesy of GENERAL MOTORS CORP.
  7. Loosen the left belt idler pulley bolt.
  8. Remove the left belt idler pulley and bolt from the engine front cover.
