Water Outlet and Thermostat Installation

WARNING: This page is about a different variant/trim than selected.

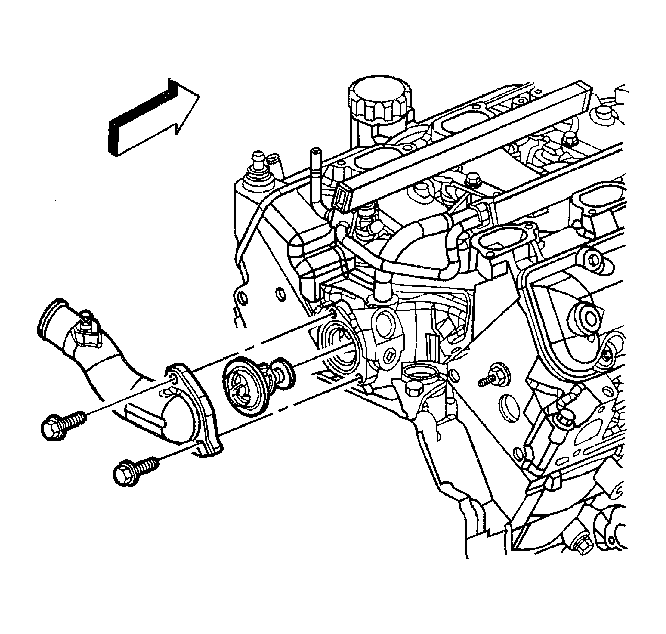

    Fig 1: View Of Water Outlet & Thermostat
    GM1452394Courtesy of GENERAL MOTORS CORP.
  1. Install the thermostat.
  2. Install the water outlet.
    3. NOTE: Refer to Fastener Notice .
  3. Install the water outlet bolts.

    Tighten:  Tighten the water outlet bolts to 25 N.m (18 lb ft).
