Valve Rocker Arm Cover Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

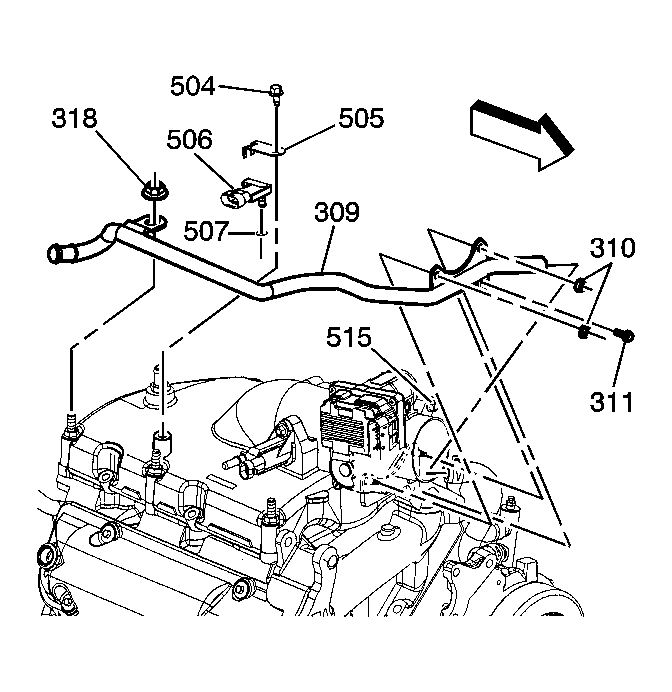

    Fig 1: View Of MAP Sensor & Heater Outlet Pipe
    GM1369211Courtesy of GENERAL MOTORS CORP.
  1. Remove the manifold absolute pressure (MAP) sensor bolt (504), the clip (505), and the sensor (506) from the upper intake manifold.
  2. Remove the heater outlet pipe hose clamp and hose from the pipe.
  3. Remove the heater outlet pipe nuts and bolt (310, 311, 318) from the upper intake manifold.
  4. Remove the heater outlet pipe (309).

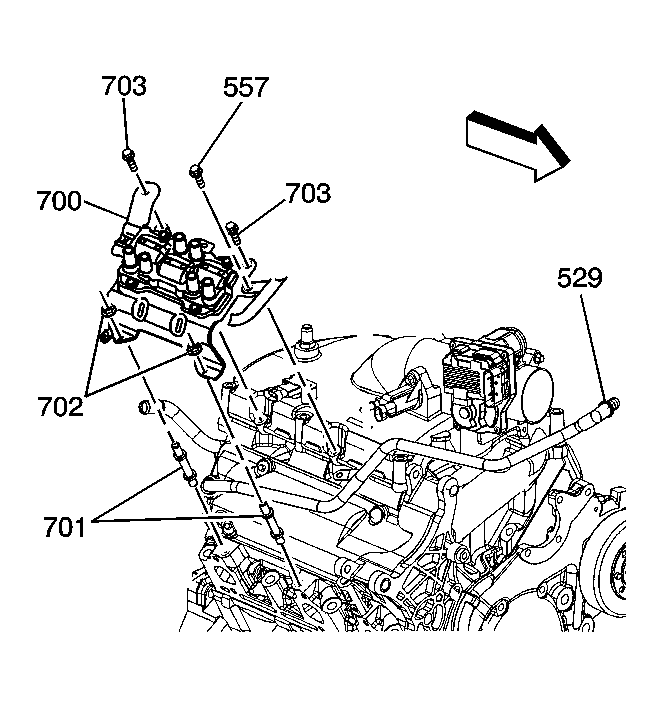

    5. Fig 2: View Of Ignition Module & PCV Fresh Air Tube
    GM1369239Courtesy of GENERAL MOTORS CORP.
  5. Remove the fresh air tube and the wire harness retaining bolt (557).
  6. Remove the ignition module nuts (702) and bolts (703).
  7. Remove the ignition module with the ignition wires attached (700).
  8. Remove the ignition module studs (701).
  9. Remove the PCV fresh air tube (529).
    10. Fig 3: View Of Valve Rocker Arm Cover - Right
    GM60846Courtesy of GENERAL MOTORS CORP.
    NOTE: Valve rocker arm cover gasket and sealant must be carefully trimmed away from lower intake manifold gasket. Failure to do so will damage the lower intake manifold gasket, causing a severe oil leak.
    IMPORTANT: When removing the valve rocker arm cover make sure the gasket stays in place attached to the cylinder head.
  10. Remove the valve rocker arm cover bolts.
  11. Remove the valve rocker arm cover.
    12. Fig 4: Identifying Cylinder Head To Lower Intake Manifold Joint
    GM190588Courtesy of GENERAL MOTORS CORP.
  12. Trim valve cover gasket and sealant away from lower intake manifold gasket at the cylinder head to lower intake manifold joints (1).
  13. Remove the valve rocker arm cover gasket.
