Upper Intake Manifold Removal

WARNING: This page is about a different variant/trim than selected.

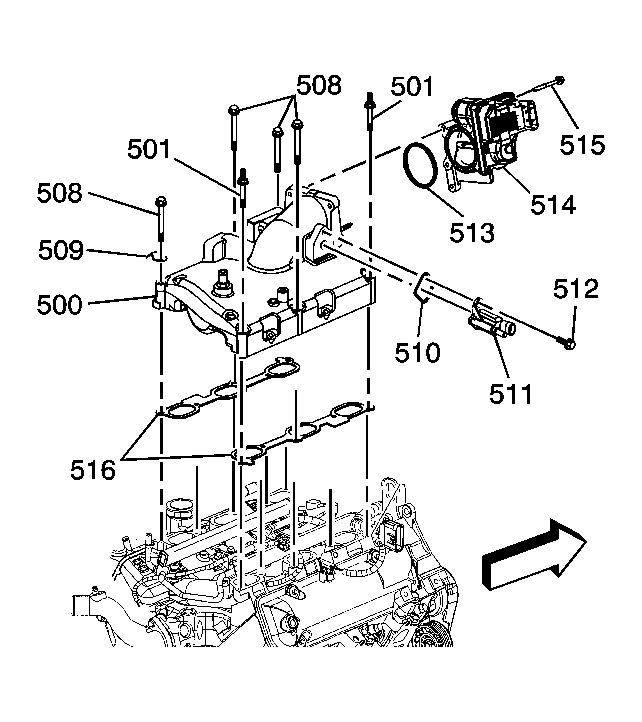

    Fig 1: View Of Throttle Body, Intake Manifold & Components
    GM1369256Courtesy of GENERAL MOTORS CORP.
  1. Remove the purge valve bolt (512) and valve (511).
  2. Remove the throttle body bolts (515).
  3. Remove the throttle body (514) and seal (513).
  4. Remove the upper intake manifold bolts (501, 508).
  5. Remove the upper intake manifold (500) and gaskets (516).
