Generator and Engine Lift Front Bracket Installation

WARNING: This page is about a different variant/trim than selected.

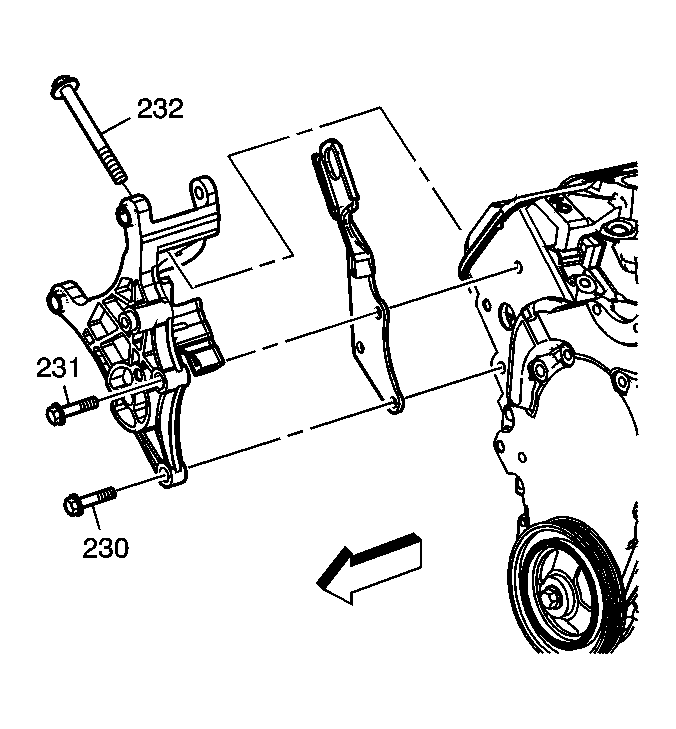

    Fig 1: View Of Generator Bracket Assembly, Bolts & Front Engine Lift Hook
    GM1456473Courtesy of GENERAL MOTORS CORP.
  1. Install the front engine lift hook.
  2. Install the generator bracket assembly.
    3. NOTE: Refer to Fastener Notice .
  3. Install the generator bracket assembly bolts (230, 231, 232).

    Tighten:  Tighten the generator bracket assembly bolts to 50 N.m (37 lb ft).
