Engine Mount Support and Strut Bracket Installation

WARNING: This page is about a different variant/trim than selected.

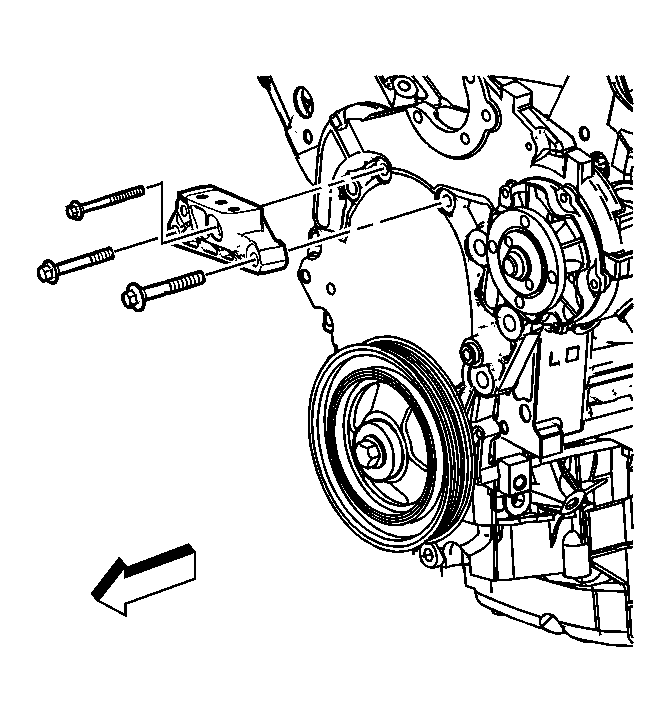

    Fig 1: View Of Engine Mount Support & Strut Bracket
    GM1369195Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount support and strut bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine mount support and strut bracket bolts.

    Tighten:  Tighten the engine mount support and strut bracket bolts to 25 N.m (18 lb ft).
