Engine Front Cover Removal

WARNING: This page is about a different variant/trim than selected.

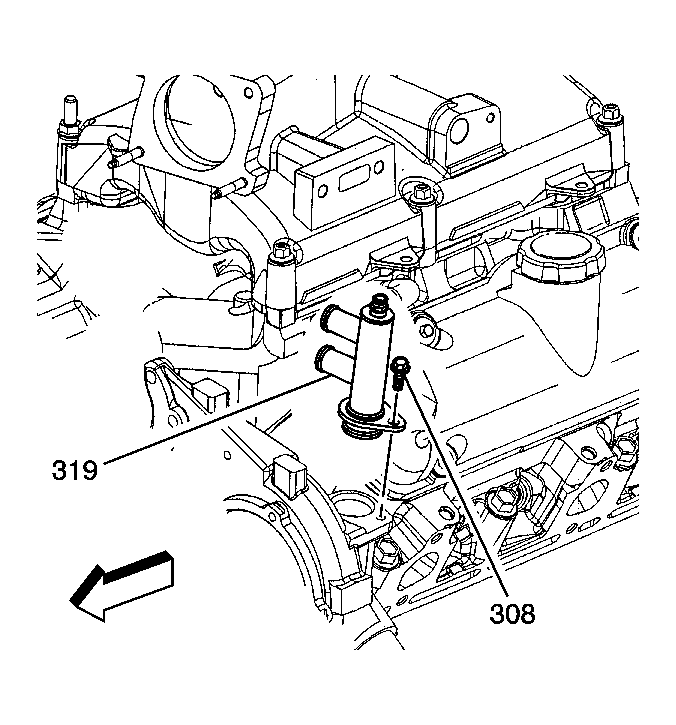

    Fig 1: View Of Heater Outlet Pipe Adapter
    GM1369269Courtesy of GENERAL MOTORS CORP.
  1. Remove the heater outlet pipe adapter bolt (308) and adapter (319).
    2. Fig 2: View Of Engine Front Cover & Bolts
    GM909617Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine front cover bolts (540, 541, 545).
  3. Remove the engine front cover.
  4. Remove the engine front cover gasket.
