Installation Procedure

WARNING: This page is about a different variant/trim than selected.

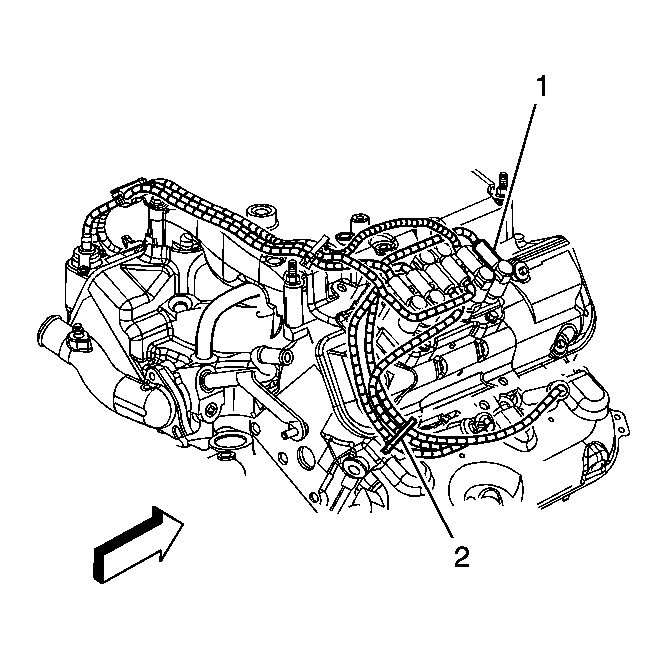

    Fig 1: View Of Spark Plug Wires (Right Side)
    GM1087939Courtesy of GENERAL MOTORS CORP.
  1. Install the spark plug wires (1) to the ignition coil/control module.
  2. Install the spark plug wires (1) to the right side spark plugs.
  3. Install the spark plug wires to the retaining clips (2).
    4. Fig 2: View Of Left Side Spark Plug Wires & Retainers
    GM1087865Courtesy of GENERAL MOTORS CORP.
  4. Install the spark plug wires (1) to the left side spark plugs.
  5. Install the spark plug wires to the retaining clips (2).
  6. Install the injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
