Installation Procedure

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: DO NOT apply threadlocker to the sensor threads. The sensor threads are coated at the factory and applying additional threadlocker affects the sensor's ability to detect detonation.

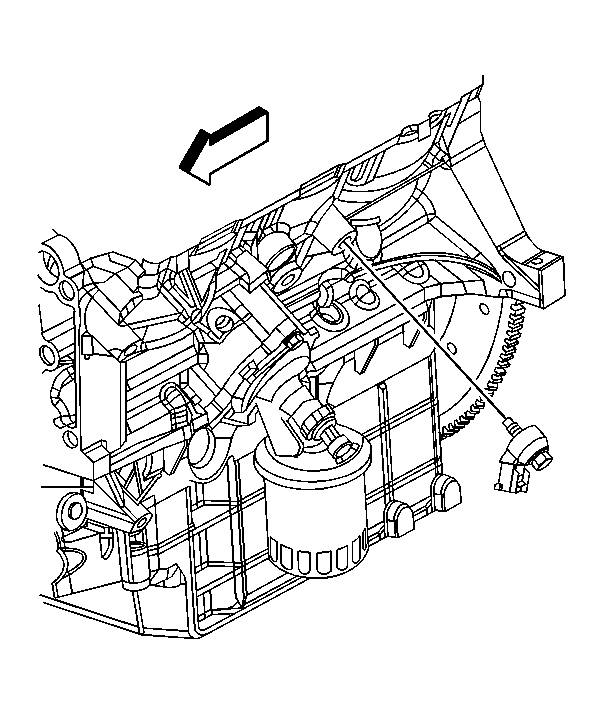

    Fig 1: View Of Knock Sensor & Bolt
    GM1822246Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the knock sensor to the engine and tighten the bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

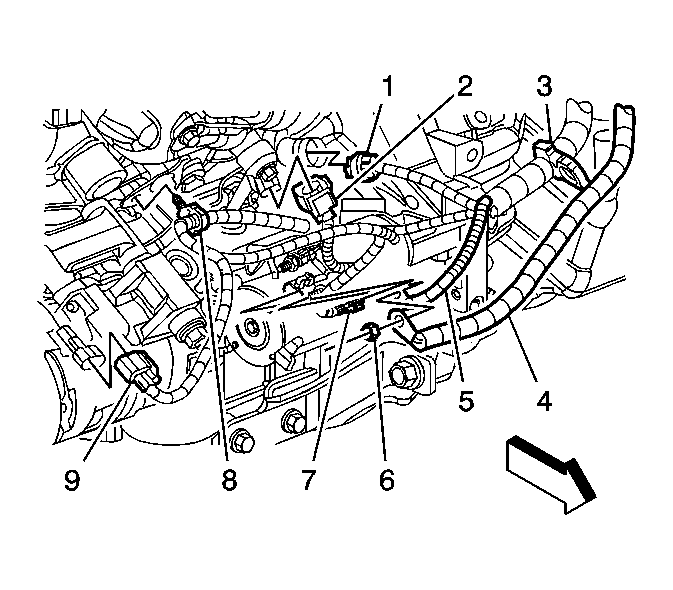

    2. Fig 2: Identifying Battery Cables & Engine Wiring Harness Clips
    GM1822245Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (2) to the knock sensor.
  3. Lower the vehicle.
