Installation Procedure

WARNING: This page is about a different variant/trim than selected.

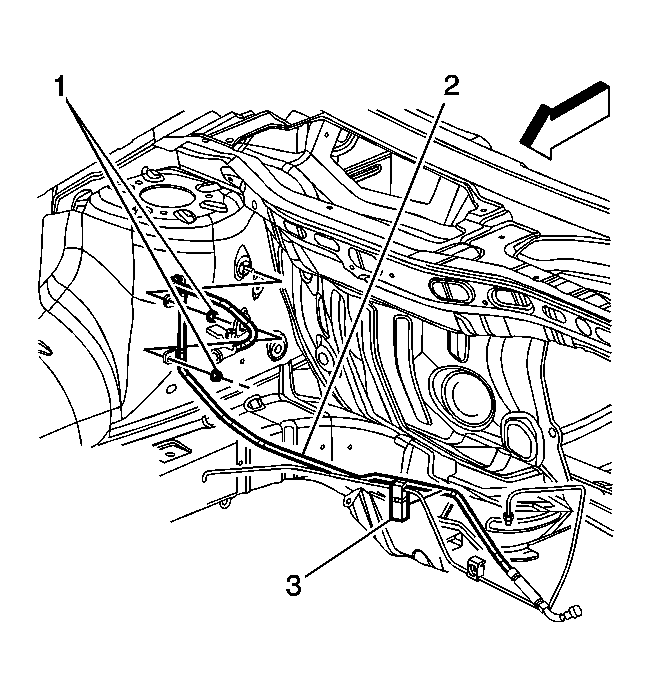

    Fig 1: View Of EVAP Purge Hose/Pipe
    GM1371130Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP hose/pipe (2) to the vehicle.
  2. Install the EVAP hose/pipe (2) to the retainer (3).
    3. Fig 2: View Of EVAP Purge Pipe
    GM879155Courtesy of GENERAL MOTORS CORP.
  3. Remove the caps or plugs from both the engine and chassis EVAP purge hose/pipes.
  4. Connect the engine EVAP purge hose/pipe to the chassis EVAP purge hose/pipe. Refer to Plastic Collar Quick Connect Fitting Service .
    5. Fig 3: View Of EVAP Purge Hose/Pipe
    GM1371130Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP purge hose/pipe (2) to the purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
    6. NOTE: Refer to Fastener Notice .
  6. Install the nuts (1) securing the evaporative emission EVAP hose/pipe (2) to the strut tower.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).
