Removal Procedure

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: The EVAP emissions canister is located under the center of the vehicle. It has 3 EVAP line connections:
  • The EVAP fresh air
  • The EVAP vent
  • The EVAP purge

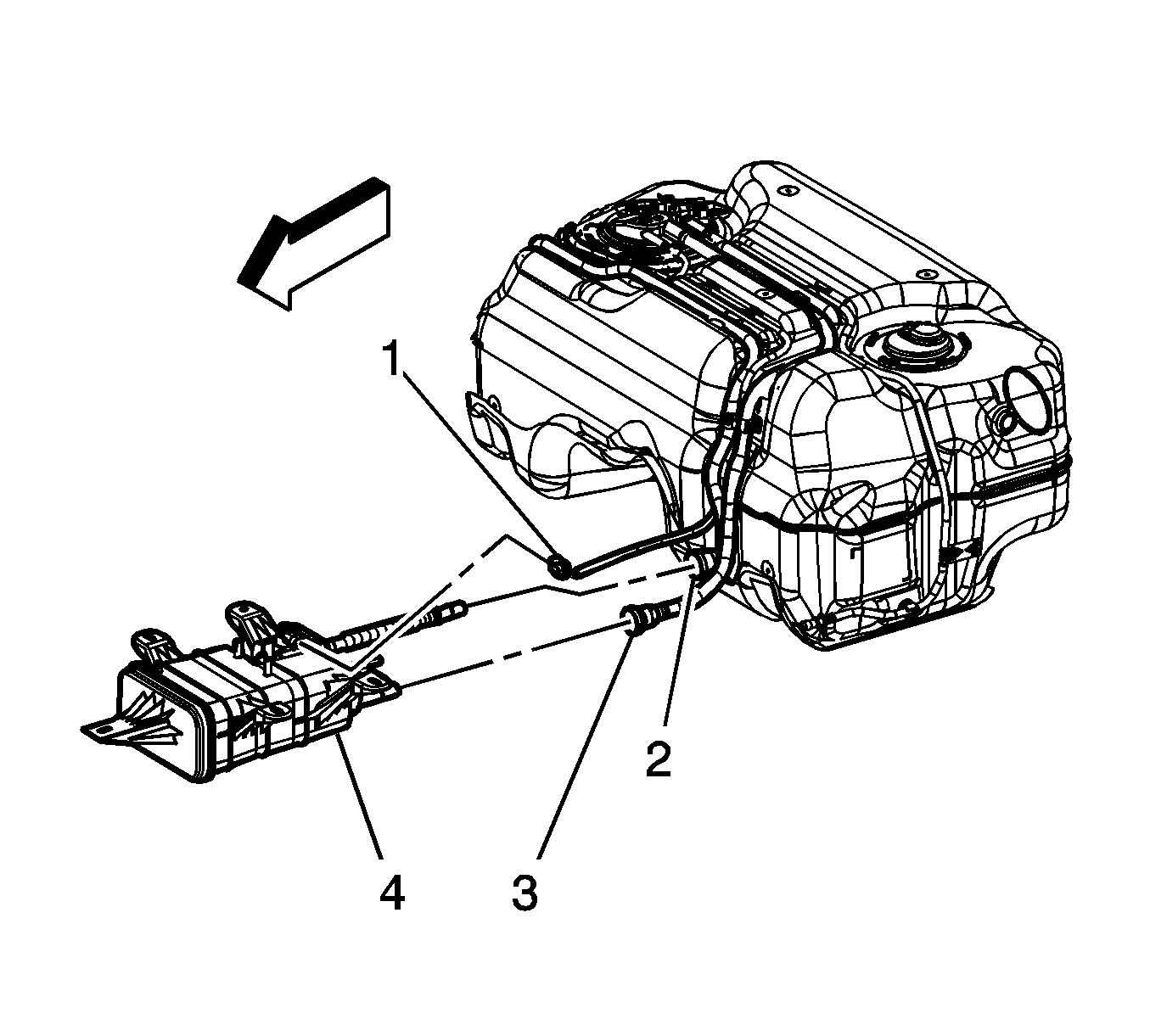

    Fig 1: View Of EVAP Canister, Hose/Pipes & EVAP Vent Solenoid Electrical Connector
    GM1371134Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. NOTE: Clean all fuel pipe connections and surrounding areas before disconnecting the fuel pipes to avoid contamination of the fuel system.
  2. Disconnect the EVAP canister fresh air hose/pipe from the fuel tank fresh air hose/pipe (2).
  3. Disconnect the fuel tank vent pipe (3) from the EVAP canister.
    4. Fig 2: View Of Chassis Fuel Supply Line, EVAP Canister Purge Hose/Pipe & EVAP Canister-To-Underbody Nuts
    GM1371133Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the chassis EVAP pipe (1) from the EVAP canister.
  5. Remove the EVAP canister-to-underbody nuts (3).
  6. Lower the EVAP canister (4).
    7. Fig 3: View Of EVAP Canister, Hose/Pipes & EVAP Vent Solenoid Electrical Connector
    GM1371134Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the EVAP vent solenoid electrical connector (1).
  8. Remove the EVAP canister (4) from the vehicle.
