Removal Procedure

WARNING: This page is about a different variant/trim than selected.

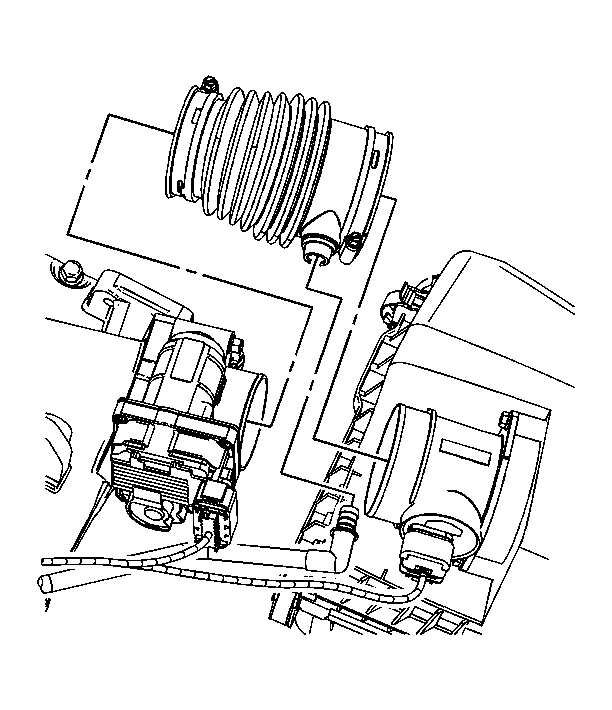

    Fig 1: Identifying Air Cleaner Intake Duct
    GM1325734Courtesy of GENERAL MOTORS CORP.
  1. Loosen the clamps at both ends of the air cleaner intake duct.
  2. Remove the positive crankcase ventilation (PCV) fresh air pipe from the air cleaner intake duct.
  3. Remove the air cleaner intake duct from the mass air flow (MAF) sensor and throttle body.
