Trailer Hitch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

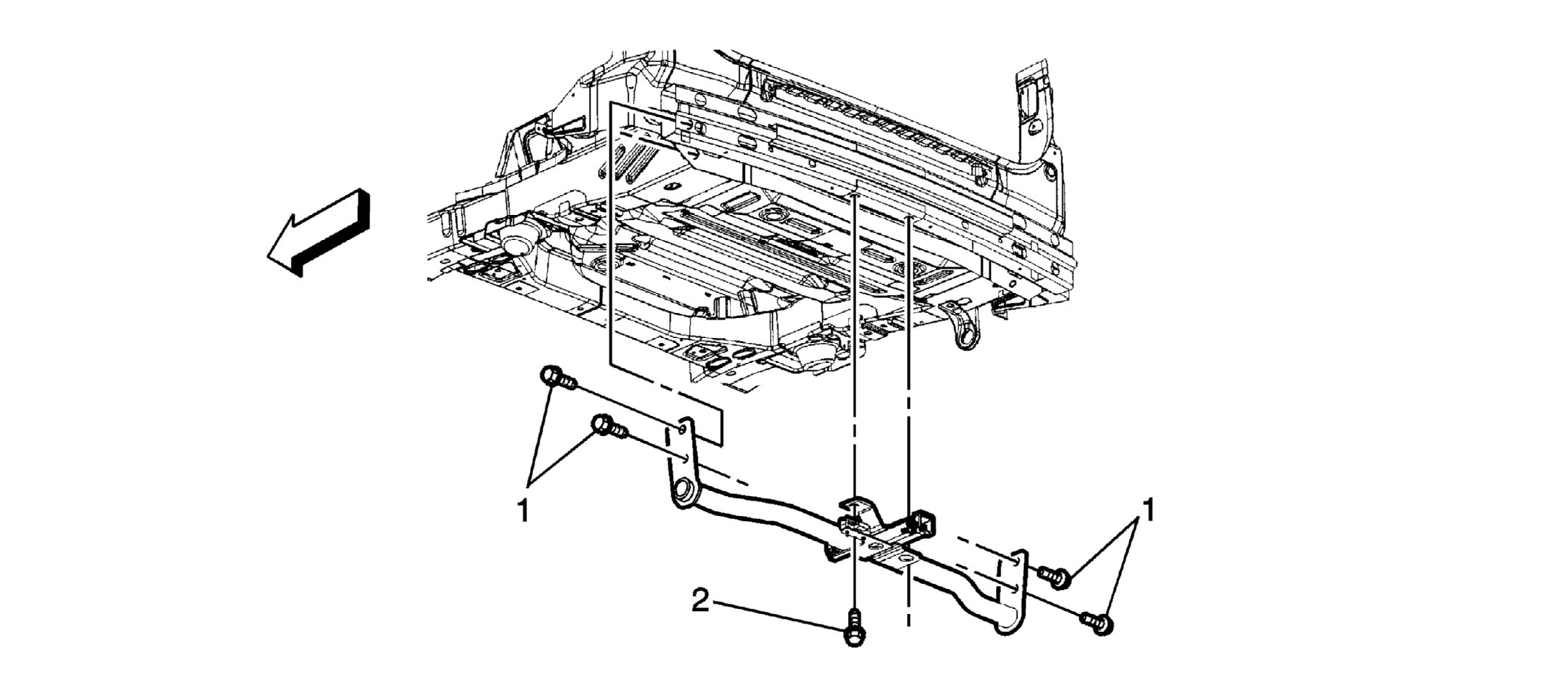

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the trailer wire harness electrical connector |
|
| 1 | Trailer Hitch Bolt (Qty: 4)
NOTE:
Refer to Fastener Caution
.
Tighten: 100 N.m (74 lb ft) |
| 2 | Trailer Hitch Bumper Bolt (Qty: 2) Tighten: 75 N.m (55 lb ft) |
