Release Systems Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

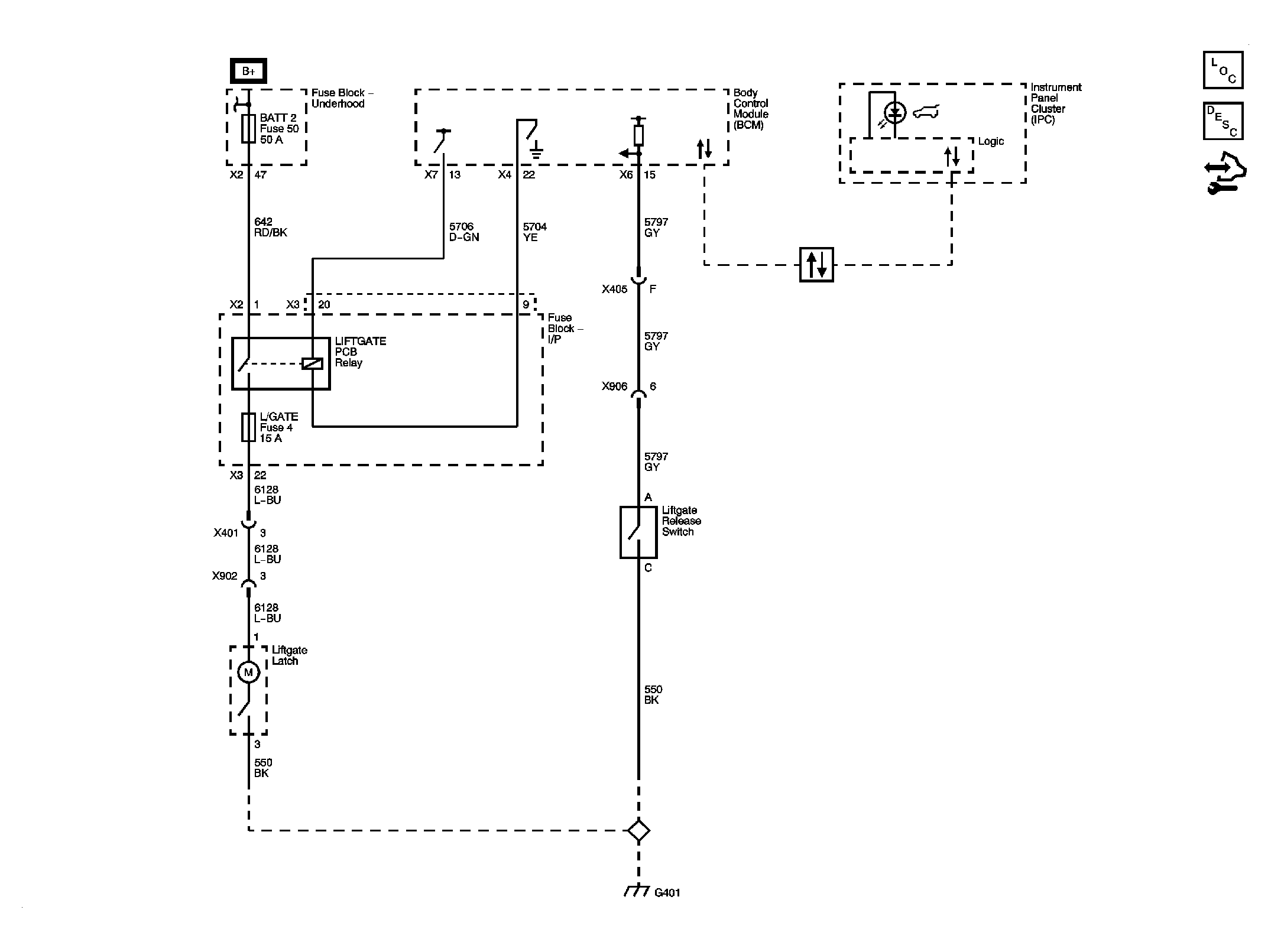

Fig 1: Release Systems Schematic
GM2086221Courtesy of GENERAL MOTORS CORP.
