Liftgate Lock Striker Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

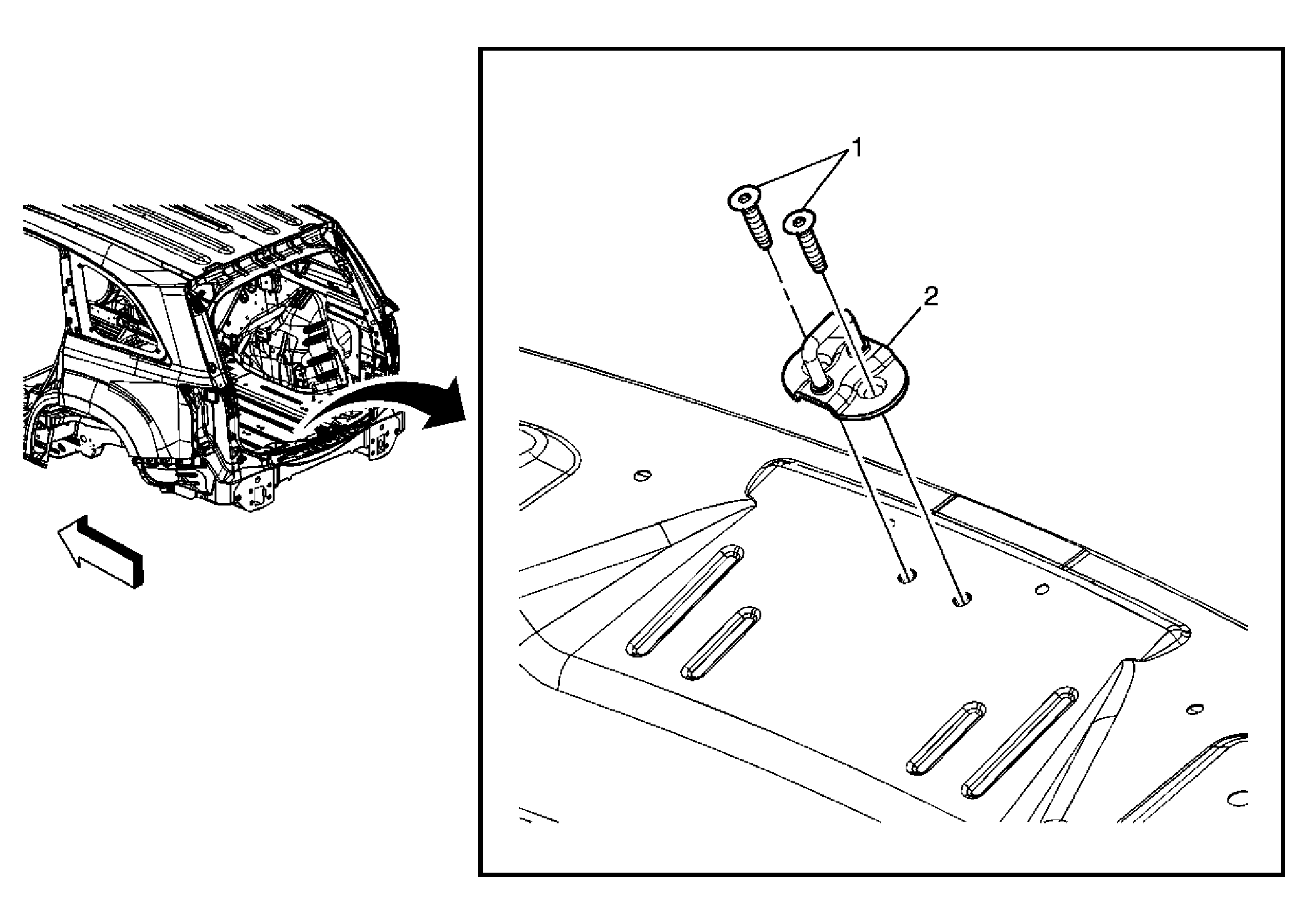

Fig 1: View Of Liftgate Lock Striker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Lock Striker Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Liftgate Lock Striker Procedure Mark the location of the striker with a grease pencil for installation purposes. Check lift gate closing efforts and align striker as required. Refer to Lock Striker Adjustment .

Callout

Component Name

Liftgate Lock Striker Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Liftgate Lock Striker

Procedure

Mark the location of the striker with a grease pencil for installation purposes.
Check lift gate closing efforts and align striker as required. Refer to Lock Striker Adjustment .
