Front Side Door Outside Handle Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

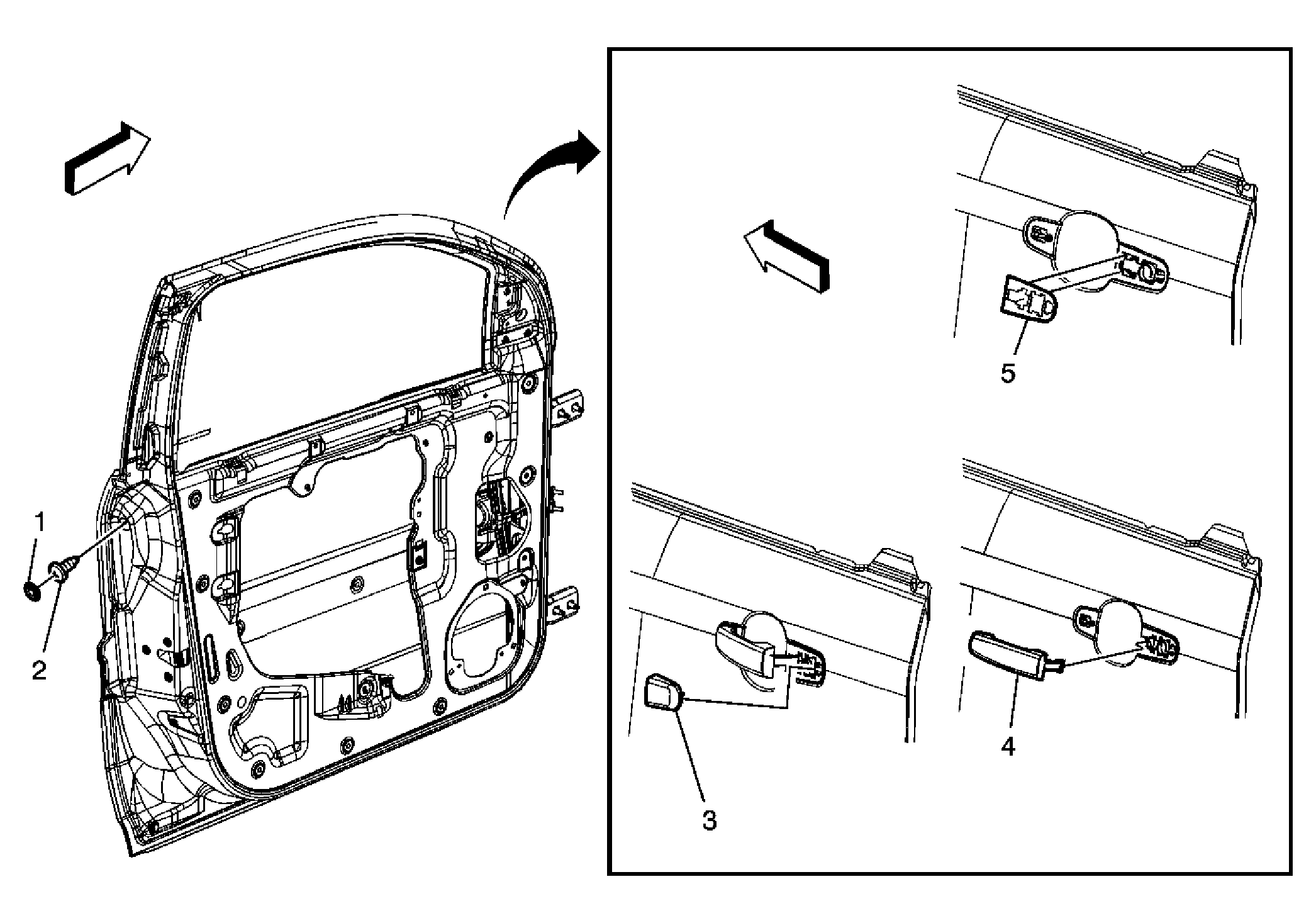

Fig 1: Identifying Front Side Door Outside Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Pull Handle Bolt Cap
2	Front Side Door Pull Handle Bolt CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
3	Front Side Door Lock Cylinder Cap Assembly
4	Front Side Door Outside Handle Lever Assembly
5	Front Side Door Outside Handle Seal
