Front Side Door Latch Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

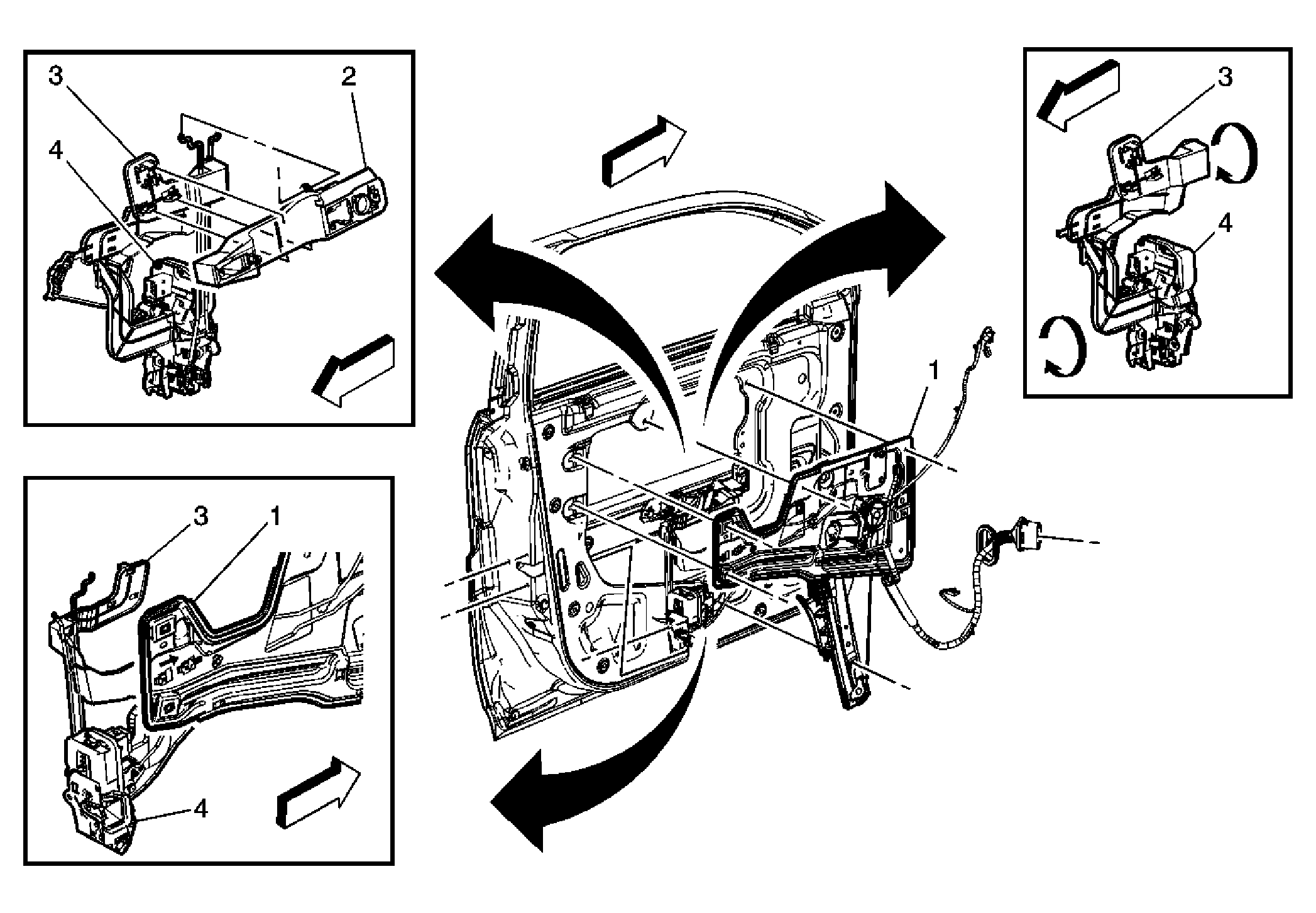

Fig 1: Identifying Front Side Door Latch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Door Window Regulator Assembly Refer to Front Side Door Window Regulator Replacement .
2	Front Door Outside Handle Housing Tip: Disconnect lock cylinder rod from latch. Disconnect electrical connector.
3	Front Door Latch Arm Assembly Tip: Depress tabs and slide forward to release from regulator module. Disconnect inside handle rod and lock button rod by twisting latch.
4	Front Door Latch Assembly Tip: Remove latch from latch arm by twisting.
