Door Lock Cylinder Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

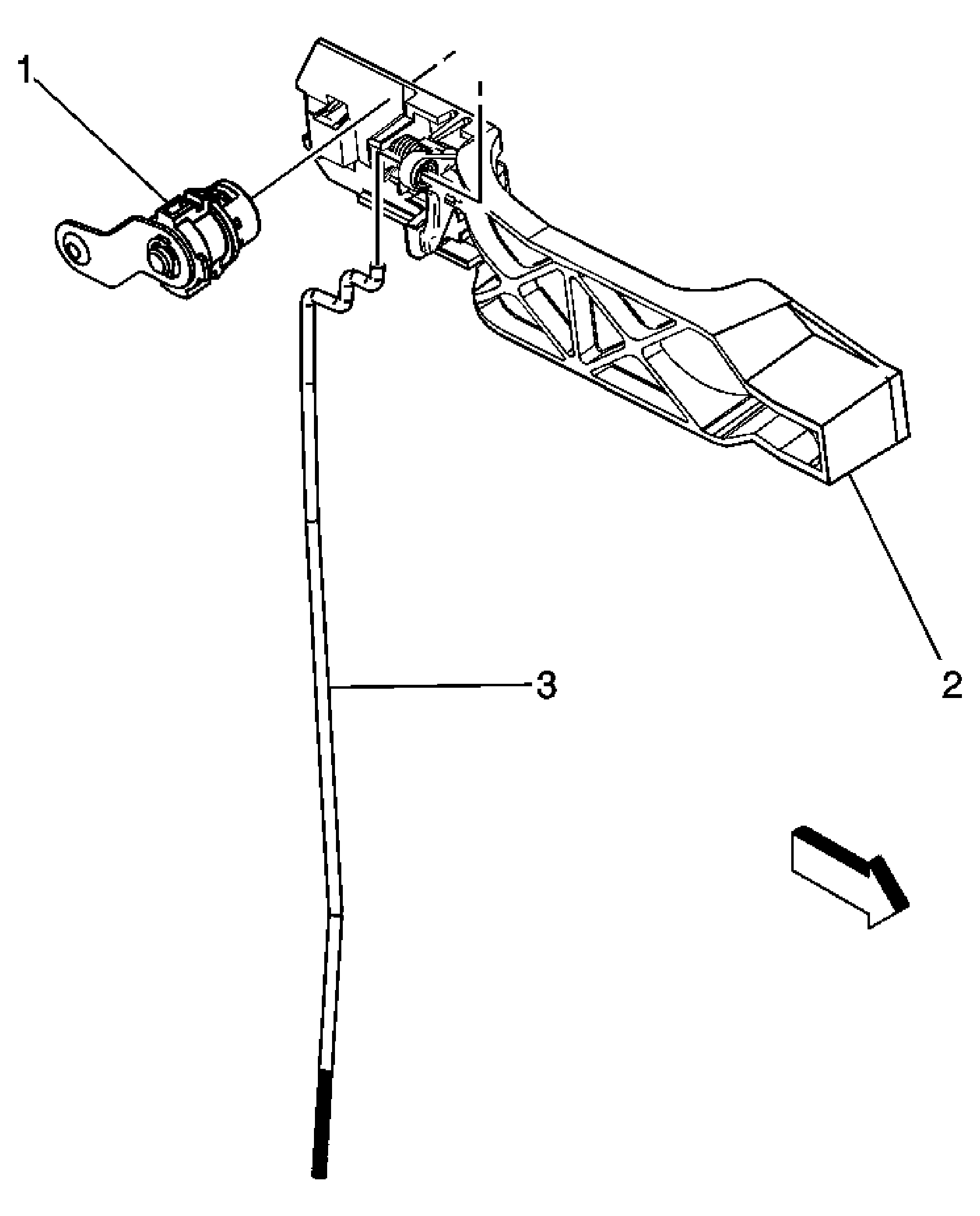

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove front door window regulator module. Refer to Front Side Door Window Regulator Replacement . |
|
| 1 | Front Side Door Lock Cylinder |
| 2 | Front Side Door Outside Handle Housing |
| 3 | Front Side Door Lock Cylinder Rod |
