Hood Strut Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

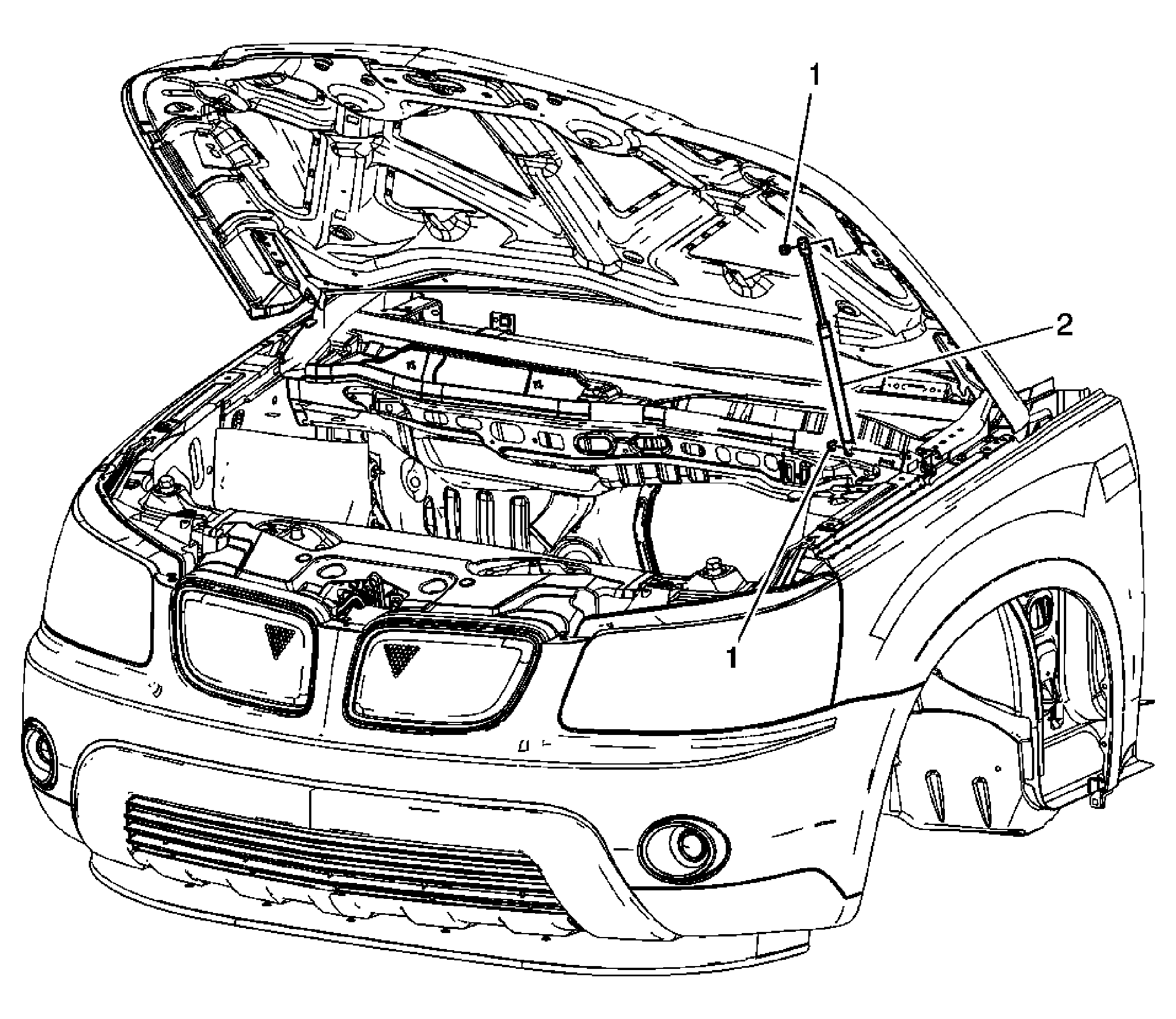

| Callout | Component Name |
|---|---|
|
WARNING:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
|
|
| 1 | Hood Strut Retainer Clip (Qty: 2) |
| 2 | Hood Strut Assembly Procedure: Pull the strut assembly off the upper and lower ball stud to remove. |
