Hood Secondary Latch Replacement (Equinox)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

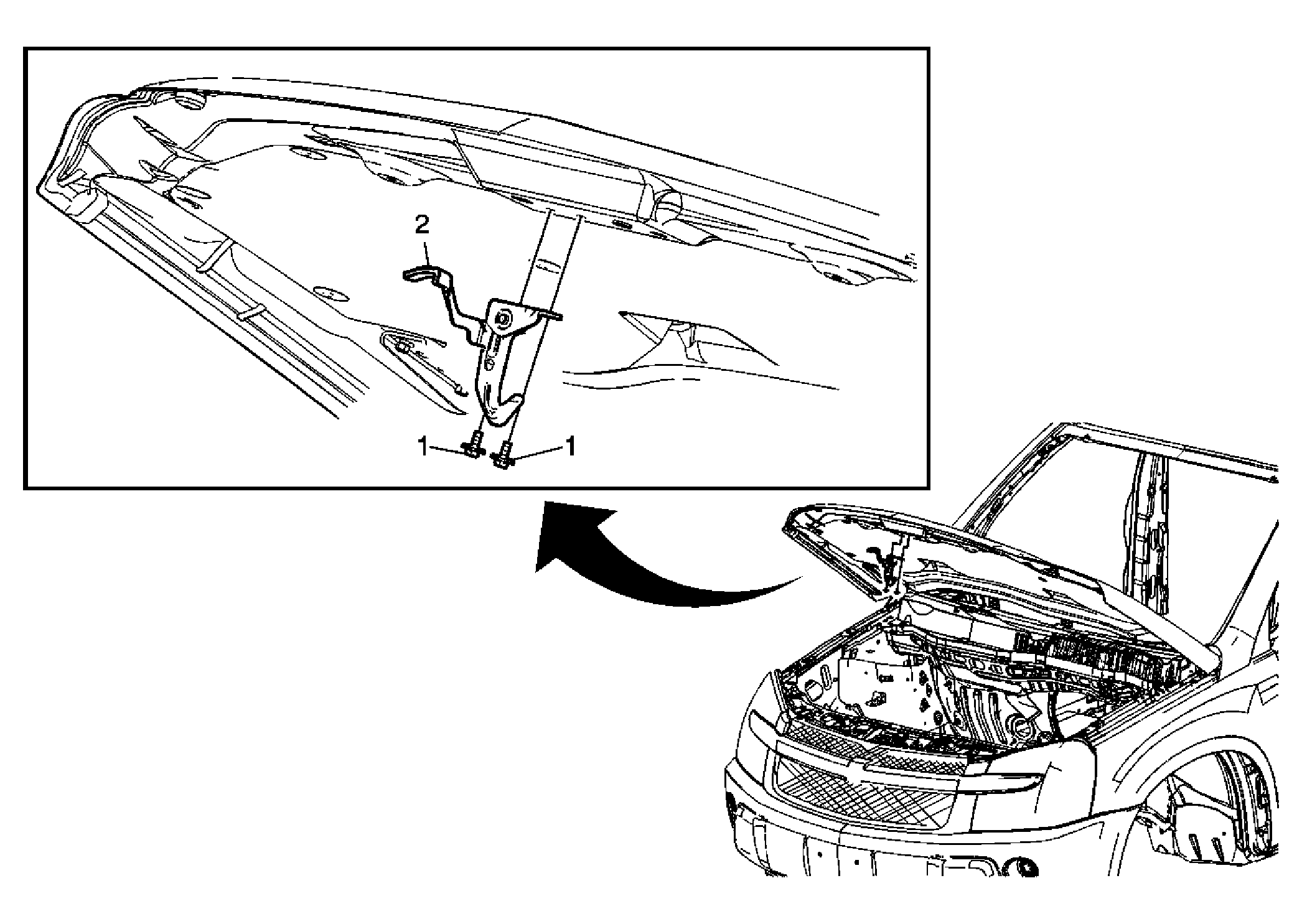

Fig 1: View Of Hood Secondary Latch (Equinox)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Hood Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Secondary Hood Latch Assembly Tip: Mark the hood latch location to the hood with a grease pencil.
