Hood Rear Outer Seal Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

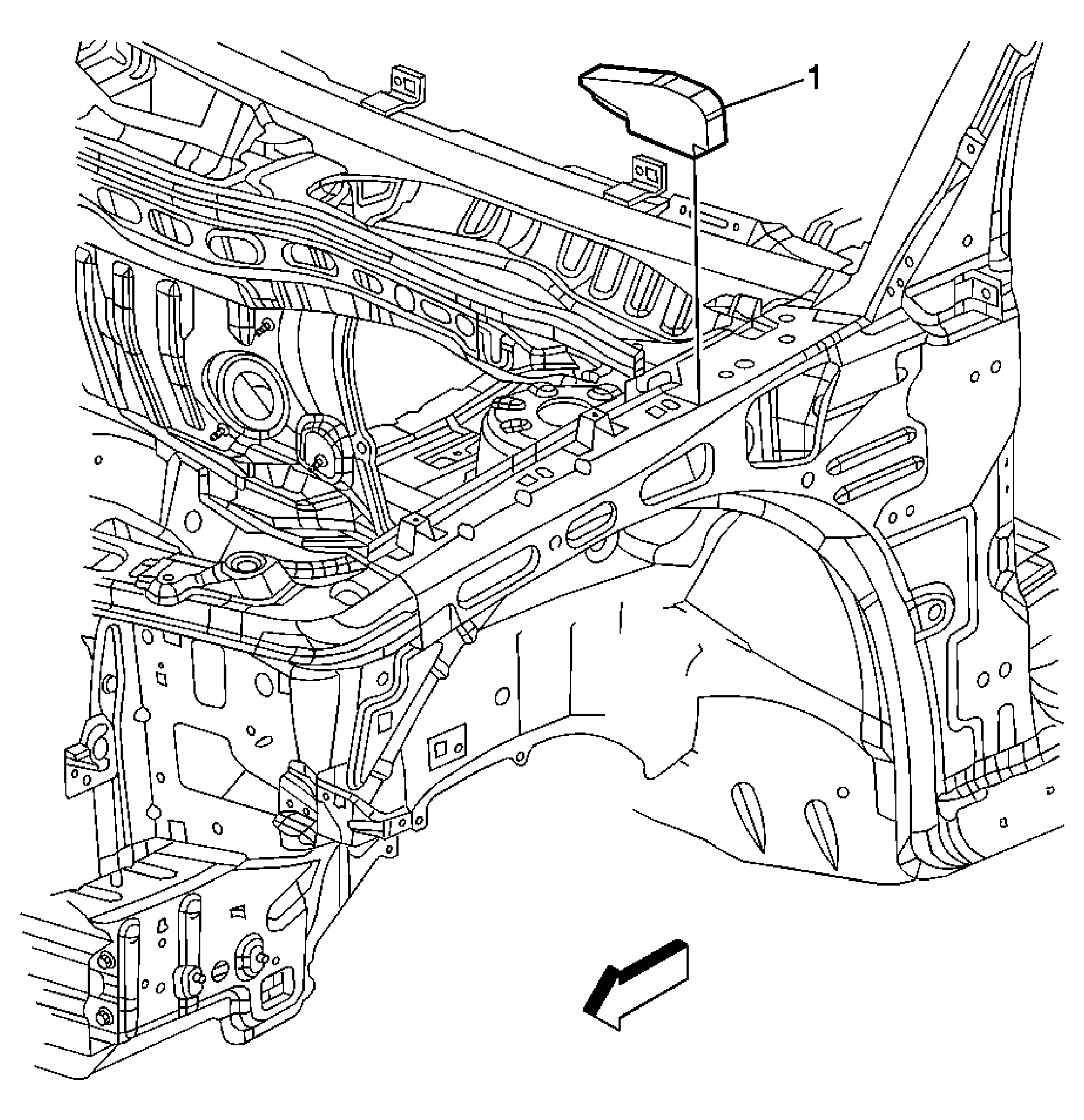

Fig 1: View Of Hood Rear Outer Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hood Rear Weatherstrip Assembly Tip: Pull the rear side hood seal, located at the end of the hood seal, from the fender. To clean the area use a lint-free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove any adhesive.
