Hood Primary and Secondary Latch Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

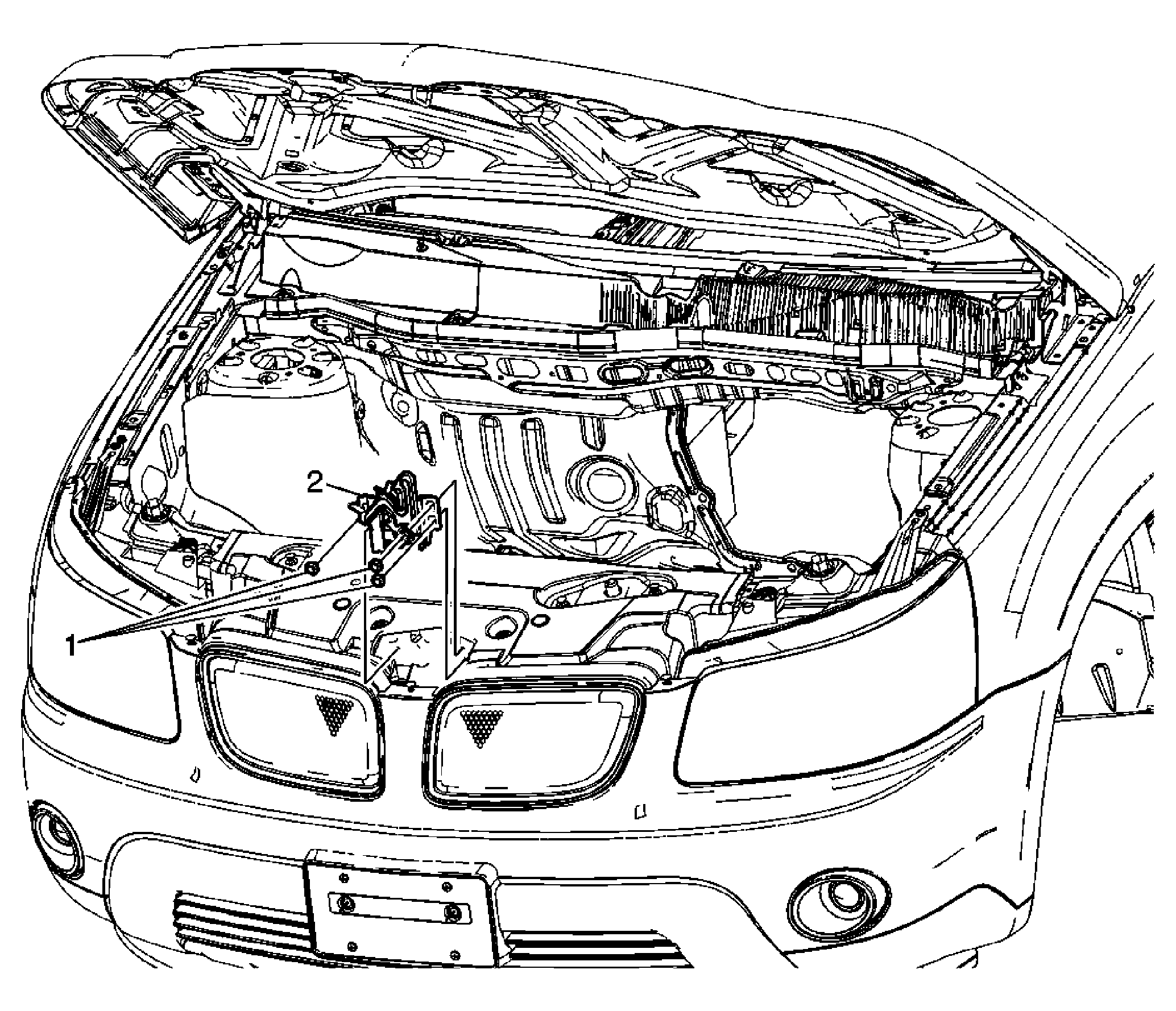

Fig 1: View Of Hood Primary & Secondary Latch (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Primary and Secondary Latch Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Hood Primary and Secondary Latch Assembly Procedure Mark the hood latch location to the support bracket with a grease pencil. Disconnect the hood latch release cable.

Callout

Component Name

Hood Primary and Secondary Latch Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Hood Primary and Secondary Latch Assembly

Procedure

Mark the hood latch location to the support bracket with a grease pencil.
Disconnect the hood latch release cable.
